Description

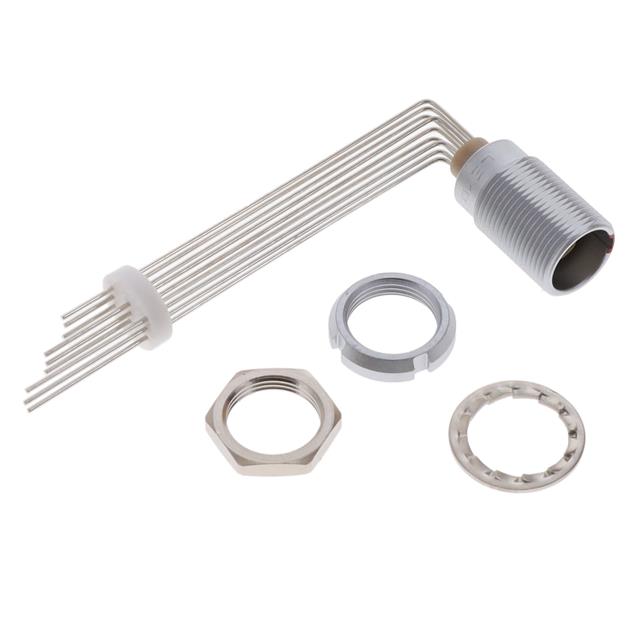

ECG.0B.309.CLV Lemo Push-Pull Metal Connector Receptacle, Female Sockets 9 Position 2A IP50 – Dust Protected Panel Mount, Through Hole, Right Angle Shielded Front and Rear Side Nut UL94 V-0 Solder
Color: Silver
Shielding: Shielded
Type: Circular Connector Assemblies
Primary Material: Metal
Shell Material: Metal
Shell Finish Material: Brass
Mating Contact Finish: Gold
Ingress Protection:IP50 – Dust Protected
Connector Type: Receptacle, Female Sockets
Number of Positions: 9
Shell Size – Insert: 9
Orientation: G
Current Rating: 2A (Amps)
Termination: Solder
Mounting Feature: Front and Rear Side Nut
Mounting Type: Panel Mount, Through Hole, Right Angle
Fastening Type: Push-Pull
Manufacturer Part Number: ECG.0B.309.CLV
Manufacturer: Lemo
Datasheet: Datasheet
