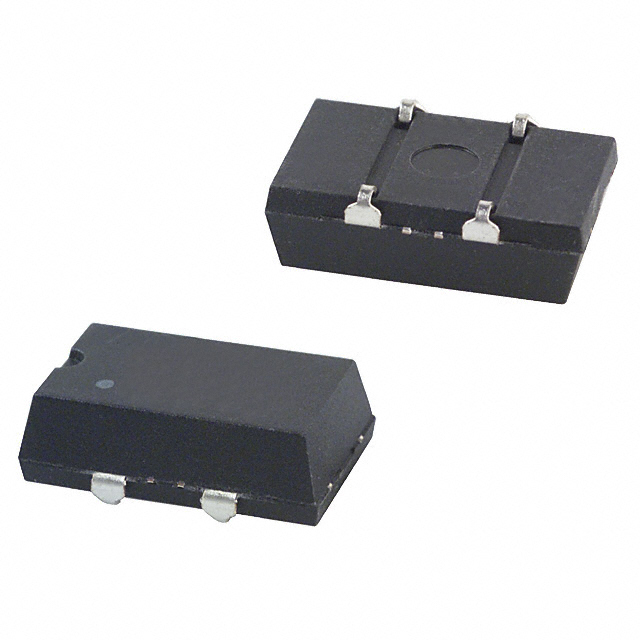

ECS ECS-8FM080-TR XC Oscillator Crystal 8MHz

Description

ECS ECS-8FM080-TR Oscillator Crystal 8MHz And Oscillator XO (Standard)

Packaging Tape & Reel (TR)
Type XO (Standard)
Frequency 8MHz
Function Tri-State (Output Enable)
Output CMOS, TTL
Voltage – Supply 5V
Frequency Stability ±200ppm
Operating Temperature -40°C ~ 85°C
Current – Supply (Max) 23mA
Ratings –
Mounting Type Surface Mount
Size / Dimension 0.551″ L x 0.341″ W (14.00mm x 8.65mm)
Height 0.185″ (4.70mm)
Package / Case 4-SOJ, 5.08mm pitch
Current – Supply (Disable) (Max) –
Online Catalog ECS-8F Series
Other Names ECS-8FM-8.000-TR
ECS8FM080TR
