Description

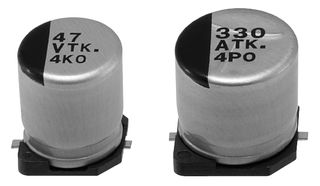

Panasonic EEE-TK1H331AQ Capacitor Aluminum Lytic 330uF 50V 20% (12.5 X 13.5mm) SMD 0.23 Ohm 600mA 2000h 125C T/R
Specification
Item Performance characteristics
SMD SMD
Tolerance on capacitance -20 to 20 %
Tangent of loss angle(max.) 0.14
Leakage current(max.) 165 micro A
Lead(terminal) pitch –
Rated ripple current-1(unit) mA r.m.s.(root mean square)
Appearance Sheathless(metal case)
Quantity(min. packaging unit) 200 PCS.
Body shape Surface mount type (vertical mount style)
Polarty type Polar
Rated voltage 50 V
Capacitance 330 micro F
Category temperature range -40 to 125 Cel
Body diameter 12.5 mm
Body length 13.5 mm
Rated ripple current-1(freq.) 100000 Hz
Rated ripple current-1 600 mA
Endurance 2000 h
Forming & packaging feature Embossed carrier taping(reel packing)
Manufacturer:Panasonic
Datasheet:Panasonic/ABA0000C585.pdf
