Description

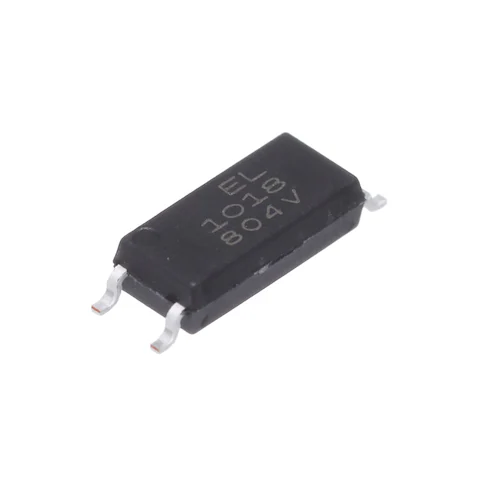

Everlight EL1018(TA)-VG Optoisolator Transistor Output 5000Vrms 1 Channel 4-SOP (2.54mm)
Specifications
Manufacturer: Everlight
Product Category: Transistor Output Optocouplers
RoHS
Output Type: NPN Phototransistor
Number of Channels: 1 Channel
Isolation Voltage: 5000 Vrms
Packaging: Cut Tape
Packaging: Reel
Brand: Everlight
Moisture Sensitive: Yes
Product Type: Transistor Output Optocouplers
Factory Pack Quantity: 3000
Subcategory: Optocouplers
Unit Weight: 3.209931 oz
Manufacturer Everlight Electronics Co Ltd
Packaging Tape & Reel (TR)
Number of Channels 1
Voltage – Isolation 5000Vrms
Current Transfer Ratio (Min) 130% @ 5mA
Current Transfer Ratio (Max) 260% @ 5mA
Turn On / Turn Off Time (Typ) 4µs, 3µs
Rise / Fall Time (Typ) 2µs, 3µs
Input Type DC
Output Type Transistor
Voltage – Output (Max) 80V
Current – Output / Channel 50mA
Voltage – Forward (Vf) (Typ) 1.45V
Current – DC Forward (If) (Max) 60mA
Vce Saturation (Max) 300mV
Operating Temperature -55°C ~ 110°C
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package 4-SOP (2.54mm)
Manufacturer:Electronic Components
Datasheet:EL101X-G_EVERLIGHT.pdf
