Description

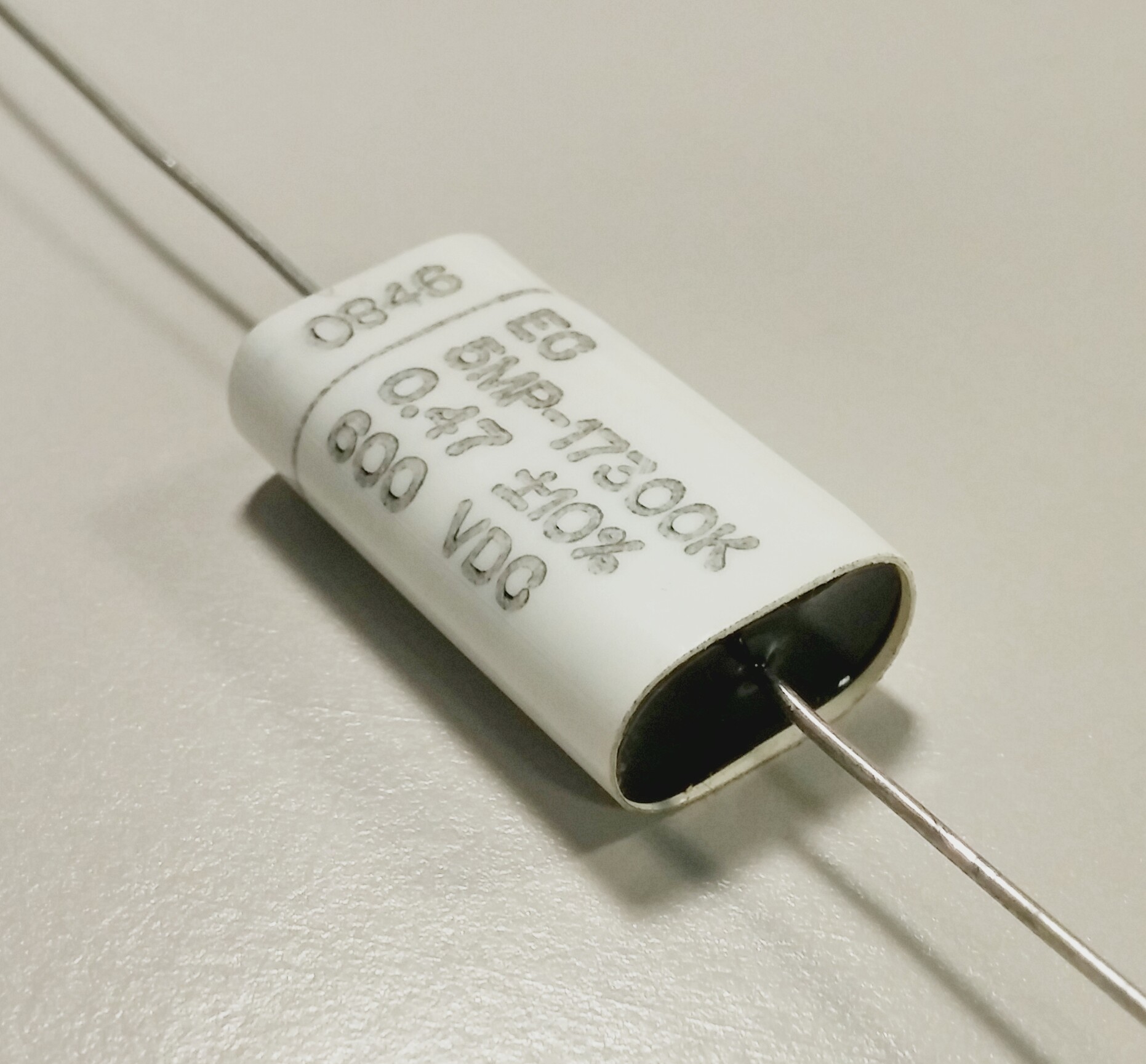

ECI Electronic Concepts 5MP-17300K Film Capacitor 0.47uF 10% 600V Oval Body Axial Through Hole
These 5MP1 metallized polypropylene capacitors are manufactured by using special techniques in order to achieve the optimum characteristics for high current, high capacitance, low ESR applications.
For Filter designs where capacitance of 50µF or less is suitable for the circuit, type 5MP affords the opportunity to utilize capacitors with ESR’s orders of magnitude better than those of electrolytics, thus providing the opportunity to improve general system design. These unique capacitors also exhibit none of the “roll-off” of capacitance with frequency often associated with electrolytics.
In addition to the features which make type 5MP particularly suitable for switching applications, they are also characterized by low losses. Other advantages of polypropylene are long term stability, retrace, low dielectric absorption, and high insulation resistance.
| EC PART NUMBER | EQUIVALENT MILITARY DESIGNATION | MAXIMUM RIPPLE CURRENT (AMPS RMS) 20-100 kHz | ||||||
| CASE TEMPERATURE | ||||||||
| 25°C | 35°C | 45°C | 55°C | 65°C | 75°C | 85°C | ||
| 5MP12D105_ | CFR13ALB105_ | 9.2 | 8.5 | 7.8 | 7.0 | 6.0 | 4.9 | 4.5 |
| 5MP12D205_ | CFR13ALB205_ | 10.8 | 10.0 | 9.1 | 8.2 | 7.0 | 5.8 | 5.3 |
| 5MP12D305_ | CFR13ALB305_ | 12.1 | 11.2 | 10.3 | 9.2 | 8.0 | 6.5 | 5.9 |
| 5MP12D505_ | CFR13ALB505_ | 13.8 | 12.7 | 11.6 | 10.4 | 9.0 | 7.4 | 6.7 |
| 5MP12D106_ | CFR13ALB106_ | 15.0 | 15.0 | 14.2 | 12.7 | 11.0 | 9.0 | 8.2 |
| 5MP12D206_ | CFR13ALB206_ | 15.0 | 15.0 | 15.0 | 15.0 | 13.6 | 11.1 | 10.0 |
| 5MP12D306_ | CFR13ALB306_ | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 | 12.4 | 11.4 |
| 5MP12D506_ | Not Available | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 | 13.6 | 12.4 |
| 5MP12F105_ | CFR13ALC105_ | 7.3 | 7.3 | 7.3 | 7.3 | 7.2 | 5.9 | 5.4 |
| 5MP12F205_ | CFR13ALC205_ | 12.0 | 12.0 | 11.3 | 10.1 | 8.7 | 7.1 | 6.5 |
| 5MP12F305_ | CFR13ALC305_ | 15.0 | 13.8 | 12.6 | 11.3 | 9.8 | 8.0 | 7.3 |
| 5MP12F505_ | CFR13ALC505_ | 15.0 | 15.0 | 14.7 | 13.1 | 11.4 | 9.3 | 8.5 |
| 5MP12F106_ | CFR13ALC106_ | 15.0 | 15.0 | 15.0 | 15.0 | 13.8 | 11.3 | 10.3 |
| 5MP12F206_ | CFR13ALC206_ | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 | 14.1 | 12.8 |
| 5MP12J105_ | CFR13ALE105_ | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 7.8 | 7.1 |
| 5MP12J205_ | CFR13ALE205_ | 15.0 | 15.0 | 15.0 | 13.4 | 11.6 | 9.5 | 8.7 |
| 5MP12J305_ | CFR13ALE305_ | 15.0 | 15.0 | 15.0 | 15.0 | 13.1 | 10.7 | 9.8 |
| 5MP12J505_ | CFR13ALE505_ | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 | 12.5 | 11.4 |
| 5MP12J106_ | CFR13ALE106_ | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 | 14.1 |
| 5MP16D105_ | CFR14LLB105_ | 10.3 | 9.5 | 8.7 | 7.8 | 6.7 | 5.5 | 5.0 |
| 5MP16D205_ | CFR14LLB205_ | 12.0 | 11.0 | 10.0 | 8.9 | 7.8 | 6.3 | 5.8 |
| 5MP16D305_ | CFR14LLB305_ | 13.3 | 12.3 | 11.2 | 10.0 | 8.7 | 7.1 | 6.5 |
| 5MP16D505_ | CFR14LLB505_ | 14.8 | 13.7 | 12.5 | 11.2 | 9.7 | 7.9 | 7.2 |
| 5MP16D106_ | CFR14LLB106_ | 17.8 | 16.5 | 15.0 | 13.5 | 11.7 | 9.5 | 8.7 |
| 5MP16D206_ | CFR14LLB206_ | 21.6 | 20.0 | 18.3 | 16.4 | 14.2 | 11.6 | 10.6 |
| 5MP16D306_ | CFR14LLB306_ | 24.3 | 22.5 | 20.5 | 18.4 | 15.9 | 13.0 | 11.9 |
| 5MP16D506_ | Not Available | 29.6 | 27.3 | 25.5 | 23.6 | 20.6 | 20.0 | 19.7 |
| 5MP16F105_ | CFR14LLC105_ | 7.3 | 7.3 | 7.3 | 7.3 | 7.3 | 6.4 | 5.8 |
| 5MP16F205_ | CFR14LLC205_ | 14.3 | 13.3 | 12.1 | 10.8 | 9.4 | 7.7 | 7.0 |
| 5MP16F305_ | CFR14LLC305_ | 15.9 | 14.7 | 13.5 | 12.0 | 10.4 | 8.5 | 7.8 |
| 5MP16F505_ | CFR14LLC505_ | 18.3 | 17.0 | 15.5 | 13.9 | 12.0 | 9.8 | 8.9 |
| 5MP16F106_ | CFR14LLC106_ | 22.4 | 20.7 | 18.9 | 16.9 | 14.6 | 12.0 | 10.9 |
| 5MP16F206_ | CFR14LLC206_ | 27.4 | 25.4 | 23.2 | 20.7 | 17.9 | 14.7 | 13.4 |
| 5MP16J105_ | CFR14LLE105_ | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 8.3 | 7.5 |
| 5MP16J205_ | CFR14LLE205_ | 15.0 | 15.0 | 15.0 | 14.2 | 12.3 | 10.0 | 9.1 |
| 5MP16J305_ | CFR14LLE305_ | 21.1 | 19.5 | 17.8 | 15.9 | 13.8 | 11.3 | 10.3 |
| 5MP16J505_ | CFR14LLE505_ | 24.4 | 22.6 | 20.6 | 18.5 | 16.0 | 13.1 | 11.9 |
| 5MP16J106_ | CFR14LLE106_ | 30.0 | 27.8 | 25.4 | 22.7 | 19.7 | 16.1 | 14.7 |
| Note: The tenth character of the EC part number represents the capacitance tolerance: M=±20%, K=±10%, J=±5% | ||||||||
| EC PART NUMBER | EQUIVALENT MILITARY DESIGNATION | CAP µF | D | L | L1 | ESR Ohms 20-100 kHz Max | Fres kHz | I PEAK AMPS | dv/dt (V/µs) |
| 5MP16D105_ | CFR14LLB105_ | 1 | 0.469 ±0.062 | 0.922 | 1.640 | 0.015 | 949 | 407 | 407 |
| 5MP16D205_ | CFR14LLB205_ | 2 | 0.534 ±0.062 | 1.110 | 1.828 | 0.012 | 617 | 528 | 264 |
| 5MP16D305_ | CFR14LLB305_ | 3 | 0.624 ±0.093 | 1.110 | 1.828 | 0.011 | 504 | 790 | 263 |
| 5MP16D505_ | CFR14LLB505_ | 5 | 0.640 ±0.093 | 1.422 | 2.140 | 0.100 | 347 | 828 | 166 |
| 5MP16D106_ | CFR14LLB106_ | 10 | 0.805 ±0.093 | 1.672 | 2.390 | 0.009 | 227 | 1280 | 128 |
| 5MP16D206_ | CFR14LLB206_ | 20 | 0.875 ±0.125 | 2.422 | 3.140 | 0.008 | 133 | 1517 | 76 |
| 5MP16D306_ | CFR14LLB306_ | 30 | 1.075 ±0.125 | 2.422 | 3.140 | 0.006 | 108 | 2277 | 76 |
| 5MP16D506_ | Not Available | 50 | 1.375 ±0.125 | 2.422 | 3.140 | 0.004 | 84 | 3795 | 76 |
| 5MP16F105_ | CFR14LLC105_ | 1 | 0.450 ±0.062 | 1.422 | 2.140 | 0.020 | 776 | 250 | 250 |
| 5MP16F205_ | CFR14LLC205_ | 2 | 0.605 ±0.093 | 1.422 | 2.140 | 0.015 | 548 | 498 | 249 |
| 5MP16F305_ | CFR14LLC305_ | 3 | 0.654 ±0.093 | 1.672 | 2.390 | 0.013 | 414 | 576 | 192 |
| 5MP16F505_ | CFR14LLC505_ | 5 | 0.769 ±0.093 | 1.922 | 2.640 | 0.011 | 299 | 782 | 156 |
| 5MP16F106_ | CFR14LLC106_ | 10 | 0.905 ±0.125 | 2.422 | 3.140 | 0.009 | 188 | 1139 | 114 |
| 5MP16F206_ | CFR14LLC206_ | 20 | 1.315 ±0.125 | 2.422 | 3.140 | 0.006 | 133 | 2277 | 114 |
| 5MP16J105_ | CFR14LLE105_ | 1 | 0.620 ±0.093 | 1.672 | 2.390 | 0.019 | 716 | 319 | 319 |
| 5MP16J205_ | CFR14LLE205_ | 2 | 0.802 ±0.093 | 1.922 | 2.640 | 0.015 | 472 | 521 | 260 |
| 5MP16J305_ | CFR14LLE305_ | 3 | 0.961 ±0.125 | 1.922 | 2.640 | 0.012 | 386 | 781 | 260 |
| 5MP16J505_ | CFR14LLE505_ | 5 | 1.067 ±0.125 | 2.422 | 3.140 | 0.010 | 265 | 950 | 190 |
| 5MP16J106_ | CFR14LLE106_ | 10 | 1.543 ±0.125 | 2.422 | 3.140 | 0.006 | 188 | 1898 | 190 |
| Note: The tenth character of the EC part number represents the capacitance tolerance: M=±20%, K=±10%, J=±5%. | |||||||||
| EC PART NUMBER | EQUIVALENT MILITARY DESIGNATION | CAP µF | D | L | Lead Dia. | ESR Ohms 20-100 kHz Max | Fres kHz | I PEAK AMPS | dv/dt (V/µs) |
| 5MP12D105_ | CFR13ALB105_ | 1 | 0.469 ±0.062 | 0.750 | 0.032 | 0.015 | 1065 | 407 | 407 |
| 5MP12D205_ | CFR13ALB205_ | 2 | 0.534 ±0.062 | 0.938 | 0.032 | 0.012 | 703 | 528 | 264 |
| 5MP12D305_ | CFR13ALB305_ | 3 | 0.624 ±0.093 | 0.938 | 0.040 | 0.011 | 574 | 790 | 263 |
| 5MP12D505_ | CFR13ALB505_ | 5 | 0.640 ±0.093 | 1.250 | 0.040 | 0.100 | 385 | 828 | 166 |
| 5MP12D106_ | CFR13ALB106_ | 10 | 0.805 ±0.093 | 1.500 | 0.040 | 0.009 | 248 | 1280 | 128 |
| 5MP12D206_ | CFR13ALB206_ | 20 | 0.875 ±0.125 | 2.250 | 0.040 | 0.008 | 141 | 1517 | 76 |
| 5MP12D306_ | CFR13ALB306_ | 30 | 1.075 ±0.125 | 2.250 | 0.040 | 0.006 | 115 | 2277 | 76 |
| 5MP12D506_ | Not Available | 50 | 1.375 ±0.125 | 2.250 | 0.040 | 0.004 | 89 | 3795 | 76 |
| 5MP12F105_ | CFR13ALC105_ | 1 | 0.450 ±0.062 | 1.250 | 0.032 | 0.020 | 861 | 250 | 250 |
| 5MP12F205_ | CFR13ALC205_ | 2 | 0.605 ±0.093 | 1.250 | 0.032 | 0.015 | 609 | 498 | 249 |
| 5MP12F305_ | CFR13ALC305_ | 3 | 0.654 ±0.093 | 1.500 | 0.040 | 0.013 | 452 | 576 | 192 |
| 5MP12F505_ | CFR13ALC505_ | 5 | 0.769 ±0.093 | 1.750 | 0.040 | 0.011 | 323 | 782 | 156 |
| 5MP12F106_ | CFR13ALC106_ | 10 | 0.905 ±0.125 | 2.250 | 0.040 | 0.009 | 200 | 1139 | 114 |
| 5MP12F206_ | CFR13ALC206_ | 20 | 1.315 ±0.125 | 2.250 | 0.040 | 0.006 | 141 | 2277 | 114 |
| 5MP12J105_ | CFR13ALE105_ | 1 | 0.620 ±0.093 | 1.500 | 0.040 | 0.019 | 784 | 319 | 319 |
| 5MP12J205_ | CFR13ALE205_ | 2 | 0.802 ±0.093 | 1.750 | 0.040 | 0.015 | 511 | 521 | 260 |
| 5MP12J305_ | CFR13ALE305_ | 3 | 0.961 ±0.125 | 1.750 | 0.040 | 0.012 | 417 | 781 | 260 |
| 5MP12J505_ | CFR13ALE505_ | 5 | 1.067 ±0.125 | 2.250 | 0.040 | 0.010 | 283 | 950 | 190 |
| 5MP12J106_ | CFR13ALE106_ | 10 | 1.543 ±0.125 | 2.250 | 0.040 | 0.006 | 200 | 1898 | 190 |
| Note: The tenth character of the EC part number represents the capacitance tolerance: M=±20%, K=±10%, J=±5%. | |||||||||
Manufacturer Part Number: 5MP-17300K
