Description

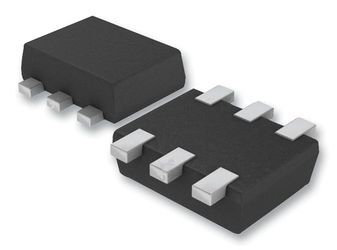

EM6K7T2R ROHM Mosfet Array 2 N-Channel (Dual) 20V 200mA 150mW Surface Mount EMT6
Specifications
Manufacturer: ROHM Semiconductor
Product Category: MOSFET
RoHS: Details
Technology: Si
Mounting Style: SMD/SMT
Package / Case: SOT-563-6
Number of Channels: 2 Channel
Transistor Polarity: N-Channel
Vds – Drain-Source Breakdown Voltage: 20 V
Id – Continuous Drain Current: 200 mA
Rds On – Drain-Source Resistance: 800 mOhms
Vgs – Gate-Source Voltage: 8 V
Minimum Operating Temperature: – 55 C
Maximum Operating Temperature: + 150 C
Configuration: Dual
Pd – Power Dissipation: 150 mW
Channel Mode: Enhancement
Packaging: Cut Tape
Packaging: Reel
Series: EM6K7
Transistor Type: 2 N-Channel
Brand: ROHM Semiconductor
Forward Transconductance – Min: 200 mS
Fall Time: 10 ns
Product Type: MOSFET
Rise Time: 10 ns
Factory Pack Quantity: 8000
Subcategory: MOSFETs
Typical Turn-Off Delay Time: 15 ns
Typical Turn-On Delay Time: 5 ns
Part # Aliases: EM6K7
Unit Weight: 0.000106 oz
Manufacturer Part Number: EM6K7T2R
