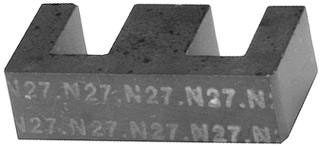

EPCOS / TDK B66371-G-X127 Core ferrite 8850nH | Epcos Ferrite Cores & Accessories
E 65/32/27 & E 70/33/32 Cores
Ferrite core supplied without air-gap
| Dimensions (mm) | ||||||
| Core Type | a | b | c | d | e | f |
| E 65/32/27 | 65+1.5/-1.2 | 32.8-0.6 | 27.4-1.0 | 44.2+1.8 | 22.2+0.8 | 20-0.7 |
| E 70/33/32 | 70.50±1.0 | 33.2-0.5 | 32-0.8 | 48+1.5 | 21.9+0.7 | 22-0.7 |
| Technical specification | ||
| Ferrite cores E 65/32/27 compliant with DIN 41 295 | ||
| AL Standard Value | Material | Type |
| 7200 nH | N27 | B66387GX127 |
| 7900 nH | N87 | B66387GX187 |
| Ferrite cores E 70/33/32 compliant with DIN 41 295 | ||
| AL Standard Value | Material | Type |
| 8850 nH | N27 | B66371GX127 |
| 9700 nH | N87 | B66371GX187 |
| Magnetic Form Characteristics | |||||
| Core Type | ΣI/A mm-1 | Ie mm | Ae mm2 | Vmin mm2 | Ve mm3 |
| E 65/32/27 | 0.27 | 147 | 535 | 529 | 78600 |
| E 70/33/32 | 0.22 | 149 | 683 | 676 | 102000 |
Transformer Ferrite Core, 8850nH, 70.5 x 32 x 33.2mm For Use With transformer B66371GX127 or other Transformer Ferrite Cores.
Manufacturer:Epcos / TDK
Datasheet:B66371-G-X127.pdf
