Description

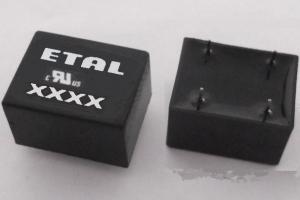

ETAL 9025 LOW PROFILE LINE MATCHING TRANSFORMER
Features Applications
∗ Low Profile (11mm)
∗ Lead-free (Pb-free)
∗ RoHS compliant
∗ Vacuum encapsulated
∗ IEC 60950 and UL 60950 certified
∗ UL Recognized Component
∗ Telecommunications
∗ Modems to V.34
∗ Portable computers
∗ Line matching
∗ Fax/modems
∗ nstrumentation
∗ Voice
9025 is intended for data communications to V.34 9025 is certified to IEC 60950 and UL 60950.
9025 is a UL Recognized Component and is
supported by an IEC CB Test Certificate. The part
is completely lead-free, compliant with RoHS
Directive 2002/95/EC, and suitable for lead-free
and conventional processing.
(33.6kbps). With careful design, V.90/V.92
performance (56kbps) may be achievable.
