Description

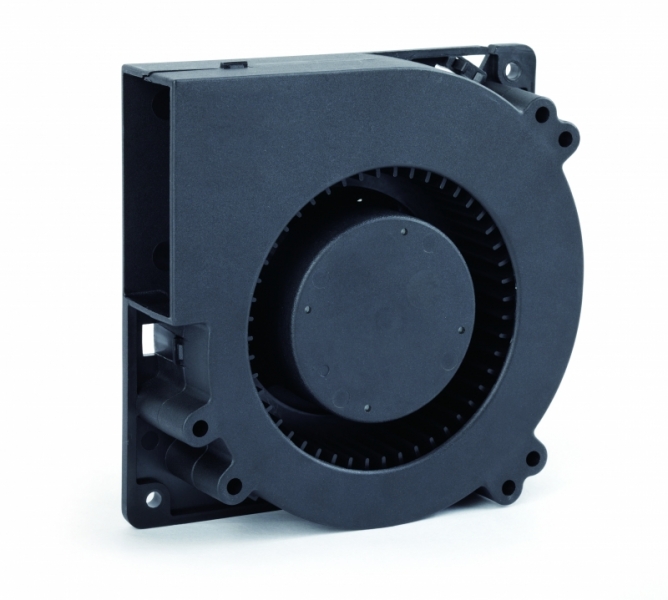

FBD1232B24W5-81-2R Cooltron DC / AC Fan 120X120X32mm, 24DC, 2500RPM
Cooltron DC BLOWER 120 x 120 x 32mm
Air Flow:25.70 ~ 38.20 CF
Specifications:
Housing/Blade:
Thermoplastic PBT, UL 94V-0
Insulation Resistan:
10MO, 500VDC/min between bare wire and frame
Dielectric Strength:
5mA max. 500VAC/min between bare wire and frame
Operation Temp:
-20C to 70C (Humidity 15%-90%RH)
Storage Temp: -40C to 85C (Humidity 15%-90%RH)
Lead Wire:UL Type #30 AWG
Weight: 307 g
Packing:40PCS/CTN.
There’s wide selection of COOLTRON blowers, brushless DC fans, and inductive AC fans. Sizes from 15~254 mm; thickness from 6~89 mm; voltage from DC 3.3V, 5V, 12V, 24V, 48V to AC 110V, 220V; and dual voltage, ball, sleeve, or hybrid; wire lead or terminal; auto restart protection; locked rotor alarm; speed sensor (tachometer); and temperature controlled speed. COOLTRON fan accessories include finger guard (wire or plastic), dust filter kit, power cords (standard or daisy chain type), and aluminum/stainless EMI/RFI filters.
Manufacturer:Electronic Components
Datasheet:FBD1232B24W5-81-2R.pdf
