Description

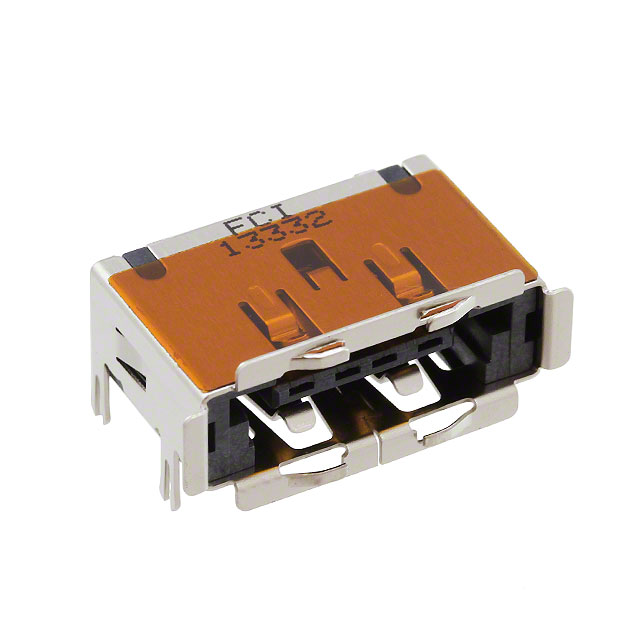

FCI 10074703-001RLF Combination ESATA / USB Connector / Port Right Angle Circuit Board Mount RoHS
Manufacturer: FCI
Product Category: I/O Connectors
RoHS: RoHS Compliant Details
Brand: FCI
Product: Combo Connectors
Gender: Male / Female
Number of Positions: 7 Position
Number of Ports: 2
Pitch: 1.27 mm
Voltage Rating: 12 VAC
Contact Plating: Gold
Mounting Style: Through Hole
Termination Style: Solder
Mounting Angle: Right
Color: Black
Contact Material: Copper Alloy
Current Rating: 1.5 A
Features: With USB
Flammability Rating: UL 94 V-0
Housing Material: Thermoplastic
Insulation Resistance: 1000 MOhms
Operating Temperature Range: 0 C to + 50 C
Manufacturer Part Number: 10074703-001RLF
