FERROXCUBE PLT22/16/2.5/S-3F3 PLANAR CORE

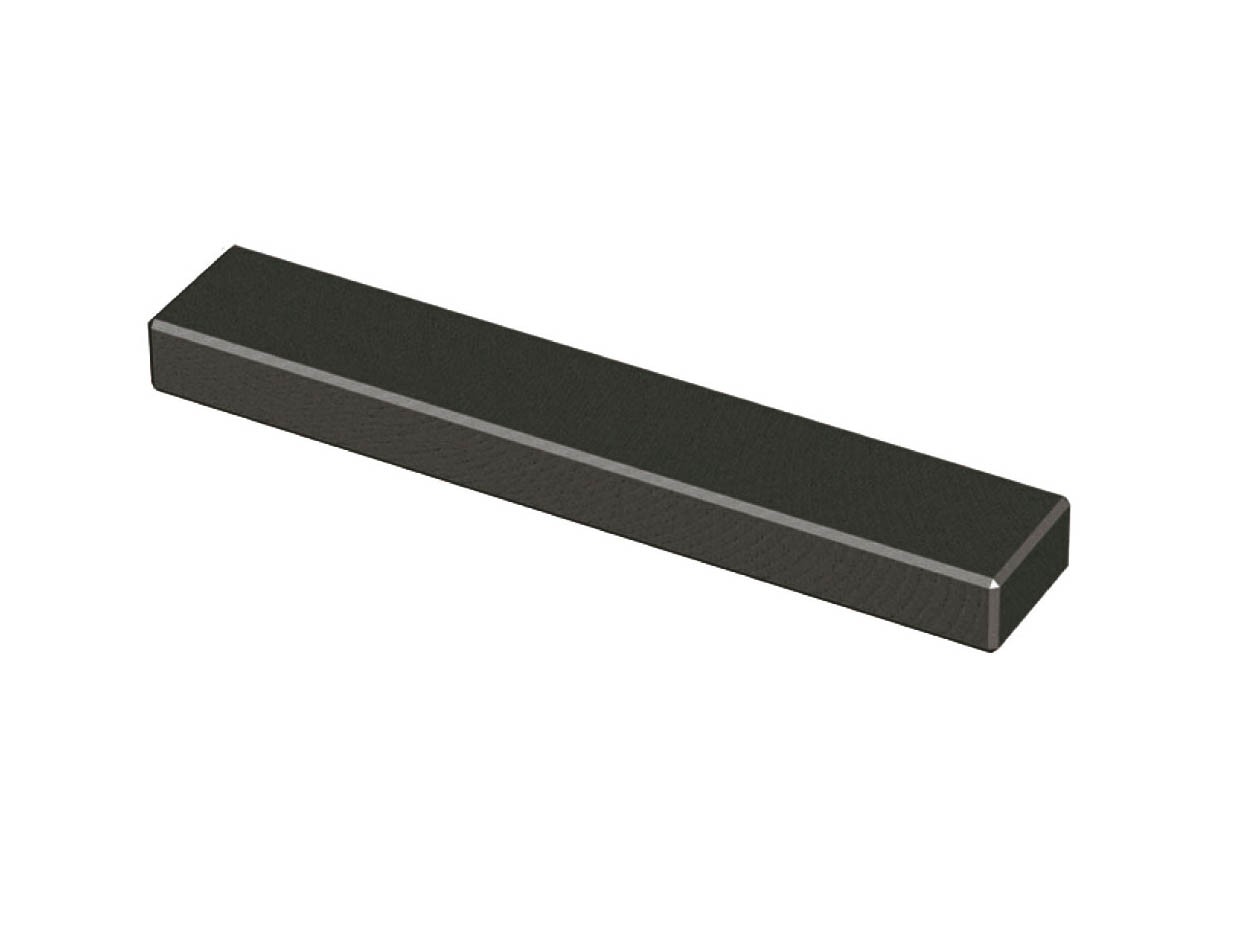

PLATE I PLT22/16/2.5/S-3 F3PLATE I PLT22/16/2.5/S -3F3; Length / Height ex ternal:16mm; Width exter nal:22mm; Depth external :2.5mm; Grade ferrite:3F 3 RoHS Manufacturer: FERROXCUBE

SKU: PLT22/16/2.5/S-3F3 Categories: , Tag: Brand:

Description

PLT22/16/2.5/S-3F3 Ferroxcube Ferrite Beads and Chips Ferrite Plate RoHS

The PLT22/16/2.5/S-3F3 is a Planar E Core, made from press tooling. This gives the advantage of radiused corners and edges. It also means that clamp recesses can be incorporated. Planar magnetic offer an attractive alternative to conventional core shapes when a low profile of magnetic devices is required. Basically this is a construction method of inductive components whose windings are fabricated using printed circuit tracks or copper stampings separated by insulating sheets or constructed from multilayer circuit boards. Planar device can be constructed as standalone components or “integrated” into a multilayer mother board with slots for the ferrite E-core.
  • Low profile construction
  • Low leakage inductance
  • Excellent repeatability of parasitic properties
  • Ease of construction and assembly
  • Greater reliability
  • Excellent thermal characteristics, easy to heatsink

Applications

Industrial

Manufacturer: Ferroxcube
Product Type: Ferrite Core
Material: Ferrite
Material Grade: 3F3
Geometry: E Core
Orientation: N
Weight (lbs): 0.0088
Manufacturer:Ferroxcube
Datasheet:Ferroxcube/PLT22.pdf
