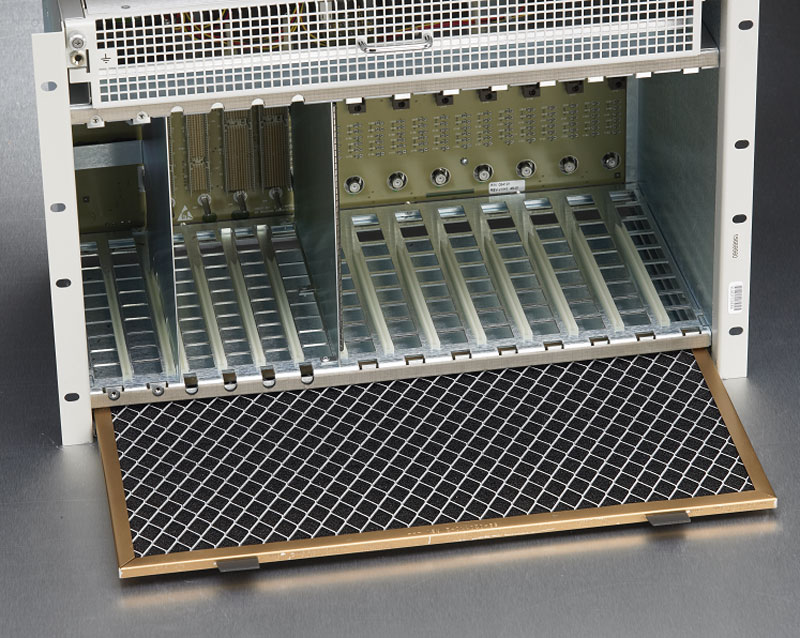

031747 Rev. A UNIVERSAL AIR FILTERS FF-5X AIR FILTER 5.00″ x 10.00″ x 0.50″ with 1/4″ thick, black, 10 PPI Quadrafoam rated UL 94 HF-1. Aluminum frame and Uni-grid support on the upstream side and 1/8″ cell x 1/4″ aluminum honeycomb EMI material on the downstream side. Frame and honeycomb with clear chemical conversion finish; custom flange and uni-grid with black epoxy powder coat. Filter complete with mounting flange installed on filter face and part number and rev level metal stamped into frame.

Quadrafoam™ Air Filters

Protect equipment with fire resistant, cleanable filters

Quadrafoam™ air filters offer low pressure drop, fire resistance, and the ability to capture large amounts of airborne dust in industrial enclosure applications. Quadrafoam™ is ideal for use in equipment where permanent, cleanable filters are most appropriate.

Applications

Quadrafoam™ air filters are offered in a broad range of porosities (PPI) to meet custom filtration performance requirements. They also comply with UL 94 HF-1 self-extinguishing flame safety standards for electronics in industrial, medical, telecom, and military electronics air filter applications. Quadrafoam™ air filters are the ultimate in networking and communications equipment where compliance to NEBS, ATCA and other industrial computer specifications are required.
Quadrafoam™ and Quadrafoam II™ filters are configured in made-to-size aluminum-framed, permanent type cleanable filters for fresh air intake and exhaust, or by themselves in cut-to-size pads. Quadrafoam II air filters are specially designed for harsh environments and are formulated to better withstand prolonged exposure to high temperature and high humidity environments. Therefore, Quadrafoam II air filters are an effective filter for mist elimination, and assist enclosures in meeting various MIL-STD, NEMA and IP ratings.

Quadrafoam II™ air filters support customer outside plant enclosure compliance in the areas of flame, fungus, and corrosion resistance. Customer products configured with Quadrafoam II™ air filters have been environmentally tested to withstand dust intrusion and wind driven rain as detailed in NEBS GR-487-CORE.

We suggest you test all Quadrafoam™ products to determine how they can contribute to your product.

Quadrafoam™ Models: FF-2X, FF-3, FF-5, FF-5X, FF-1025-B
Size	Initial Resistance* (Pascals)	Average Synthetic Dust Weight Arrestance(%)
10 PPI	0.01 (2,49)	38
25 PPI	0.05 (12,44)	66
45 PPI	0.07 (17,41)	80
60 PPI	0.12 (29,84)	82
*in inches water gauge Tests performed according to ASHRAE Standard 52.1 -1992 at 300 feet per minute (1,53 m/s) face velocity.

Manufacturer Part Number: 31747
