Description

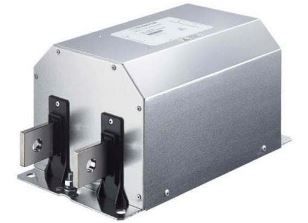

FN2210-600-99-R5 Schaffner DC EMC/EMI filter Power Line Filters 600A 25W w/o Cy caps 1000VDC AC DC Single Stage Terminal Post Chassis Mount RoHS
Specifications
Manufacturer:Schaffner
Product Category:Power Line Filters
Filter Type:DC Busbar Filter
Voltage Rating:1 kV
Current Rating:600 A
Mounting Style:Chassis Mount
Termination Style:Busbar
Series:FN2210
Operating Frequency:DC
Brand:Schaffner
Product Type:Power Line Filters
Factory Pack Quantity:1
Subcategory:Power Condition
Part # Aliases:814326
Unit Weight:8.378 lbs
The FN 2211/FN 2210 series are the most compact dedicated high current DC filters for PV inverters in the industry and therefore are an optimum fit with most modern PV inverter generation. In addition the filters can be configured in a very flexible way to fulfil customized application requirements.
All FN 2211/FN 2210 come in unsymmetrical housings, which help to prevent inverse installation and wrong electrical connection. Along with grid-side installed Schaffner AC EMC/EMI filters FN 3311/FN 3310, the DC filters FN 2211/FN 2210 are key to meet the stringent international standards for electromagnetic compatibility and help to ensure a reliable and fault-free operation of the entire PV system.
Manufacturer:Electronic Components
Datasheet:SCHF-S-A0006601772-1.pdf
