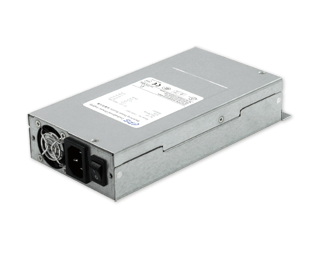

CPS FSAK540C REVISION A-01 POWER SUPPLY FSAK C SERIES 1U HIGH, INPUT: 90-264V , ACTIVE PFC. ATX DC OUTPUT: 6 CONFIGURABLE, 540W
FSAK 1U C Series
• -12V / 5A, +24V / 5A O/P for industrial application
• Operating temperature range from 0 °C to 50 °C
• Build in DC remote ON / OFF, PG / PF TTL signal
• Build in long life ball bearing fan (Delta or Sanyo)
• Build in thermal fan speed for noise reduction
• Complies with FCC, CE, NEBS, RoHS requirements
• UL / cUL, TUV, CCC and CB EN 60950 -1 certified
• MTBF 100KHRs @ 25 °C per MIL – HDBK – 217F
• 3 years manufacturer warranty
| Configurable O/P for high 12V: Intel Platform, and for high +5V / +3.3V: VME, VMX, CPCI application |
| • V2 to V5 can be configured to be either +5V, +3.3V, +24V, -5V, or -12V O/P |
| • When V2, V3, V4 are used in parallel (+5V or +3.3V O/P), the O/P is derated to 90% of max. rated current |
| • Remote ON / OFF: High state / PS OFF, Low state / PS ON |
| • PG Delay: 100-500 msec. ; PF Delay: > 1 msec. |
| • Hold – Up Time: 16 msec. (minimum) @ 80% load |
| • Rise Time: 20 msec. (maximum) @ full load |
| • Power Up Time: 800 msec. (maximum) @ full load |
| • Over Power Protection: 150% max. of rated output |
| • Over Voltage Protection on +5V, +12V, and +3.3V |
| • Short Circuit Protection on all outputs |
|
Output Rail
|
Output Voltage
|
Min.
Load |
360W O/P
Max. Load |
420W O/P
Max. Load |
480W O/P
Max. Load |
540W O/P
Max. Load |
Load Reg.
|
Ripple & Noice
|
|
V1
|
+12V |
0.5A
|
30A
|
35A
|
40A
|
45A
|
±5%
|
120mV
|
|
V2
|
+5V |
0.0A
|
15 / 30 / 35A
|
15 / 30 / 35A
|
19 / 35A
|
24 / 35A
|
±5%
|
50mV
|
| +3.3V |
0.0A
|
21 / 30 / 35A
|
24 / 30 / 35A
|
24 / 35A
|
24 / 35A
|
±5%
|
50mV
|
|
|
V3
|
+5V |
0.0A
|
15 / 30 / 35A
|
15 / 30 / 35A
|
19 / 35A
|
24 / 35A
|
±5%
|
50mV
|
| +3.3V |
0.0A
|
21 / 30 / 35A
|
24 / 30 / 35A
|
24 / 35A
|
24 / 35A
|
±5%
|
50mV
|
|
|
V4
|
+5V |
0.0A
|
35A
|
35A
|
35A
|
35A
|
±5%
|
50mV
|
| +3.3V |
0.0A
|
35A
|
35A
|
35A
|
35A
|
±5%
|
50mV
|
|
| +24V |
0.0A
|
4.0A
|
4.0A
|
5.0A
|
5.0A
|
±5%
|
240mV
|
|
| -12V |
0.0A
|
4.0A
|
4.0A
|
5.0A
|
5.0A
|
±5%
|
120mV
|
|
|
V5
|
-5V |
0.0A
|
1.0A
|
1.0A
|
1.0A
|
1.0A
|
±5%
|
100mV
|
| -12V |
0.0A
|
0.5 / 0.8A
|
0.5 / 0.8A
|
0.5 / 0.8A
|
0.5 / 0.8A
|
±5%
|
120mV
|
|
|
V6
|
+5Vsb |
0.0A
|
3.0 / 3.5A
|
3.0 / 3.5A
|
3.0 / 4.0A
|
3.0 / 4.0A
|
±5%
|
50mV
|
