Description

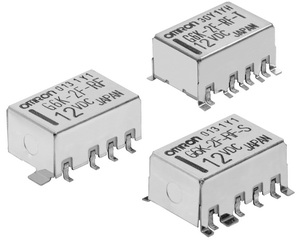

G6K-2F-RF-S-TR09 DC5 Omron Surface-mounting, High Frequency Relay RF 5VDC 1A 100mW SSMD DPDT (2 Form C) T/R ROHS
Surface-mounting, 1-GHz-Band/
3-GHz-Band, Miniature, DPDT,
High-frequency Relay
Superior high-frequency characteristics (at 1 GHz), such as an isolation
of 20 dB min. between contacts of the same polarity of 30 dB min. between
contacts of different polarity with an insertion loss of 0.2 dB max.
Miniaturized to 10.3 6.9 5.4 mm (L W H).
Rated power consumption of 100 mW with high sensitivity
Single-side stable and single-winding latching models are available.
Models with a smaller footprint (G6K(U)-2F-RF-S) are available to help save space.
G6K(U)-2F-RF-T models for 3-GHz band join the lineup with a downsized footprint.
New PCB terminals models are available.
Manufacturer:Omron Electronics
Datasheet:omron/en-g6k_2f_rf.pdf
