Description

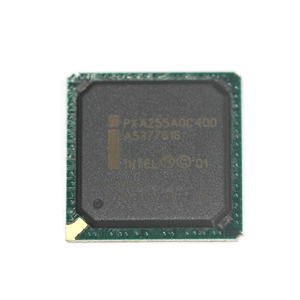

GDPXA255A0C400 Marvell IC CPU IC MICRO PROCESSOR 400MHZ 256BGA Manufacturer: INTEL / Marvell
Mfr Package Description 17 X 17 MM, 1.75 MM HEIGHT, PLASTIC, BGA-256
Status Discontinued
Microprocessor/Microcontroller/Peripheral IC Type MICROPROCESSOR
Address Bus Width 26
Bit Size 32
Boundary Scan YES
Clock Frequency-Max 3.69 MHz
External Data Bus Width 32
Format FIXED POINT
Integrated Cache YES
JESD-30 Code S-PBGA-B256
Low Power Mode YES
Number of Terminals 256
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 85 Cel
Package Body Material PLASTIC/EPOXY
Package Code BGA
Package Equivalence Code BGA256,16X16,40
Package Shape SQUARE
Package Style GRID ARRAY
Power Supplies 1.3,2.5/3.3,3.3
Qualification Status Not Qualified
Seated Height-Max 2 mm
Speed 400 MHz
Sub Category Microprocessors
Supply Voltage-Nom 1.3 V
Supply Voltage-Min 1.24 V
Supply Voltage-Max 1.43 V
Surface Mount YES
Technology CMOS
Temperature Grade OTHER
Terminal Form BALL
Terminal Pitch 1 mm
Terminal Position BOTTOM
Length 17 mm
Width 17 mm
| Core Processor | Xscale |
|---|---|
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Speed | 400MHz |
| Co-Processors/DSP | System Control; CP7, CP14, CP15 |
| RAM Controllers | SDRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | LCD |
| Ethernet | – |
| SATA | – |
| USB | USB 1.1 (1) |
| Voltage – I/O | 2.5V, 3.3V |
| Operating Temperature | 0°C ~ 85°C |
| Security Features | – |
| Package / Case | 256-BGA |
| Supplier Device Package | 256-BGA |
| Additional Interfaces | AC97, I²C, I²S, IrDA, Microwire, MMC, SPI, SSP, UART |
Manufacturer:Intel
Datasheet:Intel/PXA255.pdf
