Description

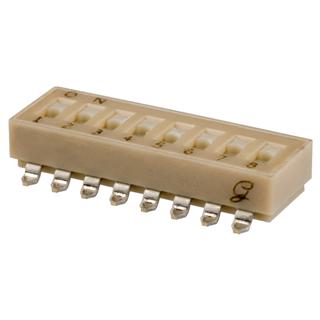

GRAYHILL – 90HBW08P SWITCH 8 POS DIP
Part Specification:
- Switch Function Configuration : ON OFF
- Pole Throw Configuration : SPST
- Actuator Style : Recessed Slide
- Total # of Positions : 8
- Terminal Pitch (mm) : 2.54mm
- Contact Plating : Gold/Nickel
- Mounting Style : Surface Mount
- Termination Style : Gull Wing
- Body Orientation : Straight
- Packaging : Tube
- Operating Temp Range : -40C to 85C
- Contact Material : Copper Alloy
- Current Rating (Max) : 0.1A
- Voltage Rating (VDC) : 30V
- Mechanical Life : 2000
- Seal : Tape
SPECIFICATIONS
Part #: 90HBW08P
Part Category: Switches
Manufacturer: Grayhill, Inc.
Description: SLIDE DIP SWITCH-8SWITCHES, SPST, LATCHED,0.1A, 6VDC, SURFACE MOUNT-STRAIGHT
REACH Compliant Yes
Status Discontinued
Switch Type SLIDE DIP SWITCH
Actuator Material THERMOPLASTIC
Actuator Type SLIDE
Body Breadth 7.37 mm
Body Height 4.83 mm
Body Length or Diameter 22.1 mm
Center Contact Material COPPER ALLOY
Center Contact Plating GOLD OVER NICKEL
Manufacturer:Electronic Components
Datasheet:GrayHill_DIP_Series_90HB.pdf
