Description

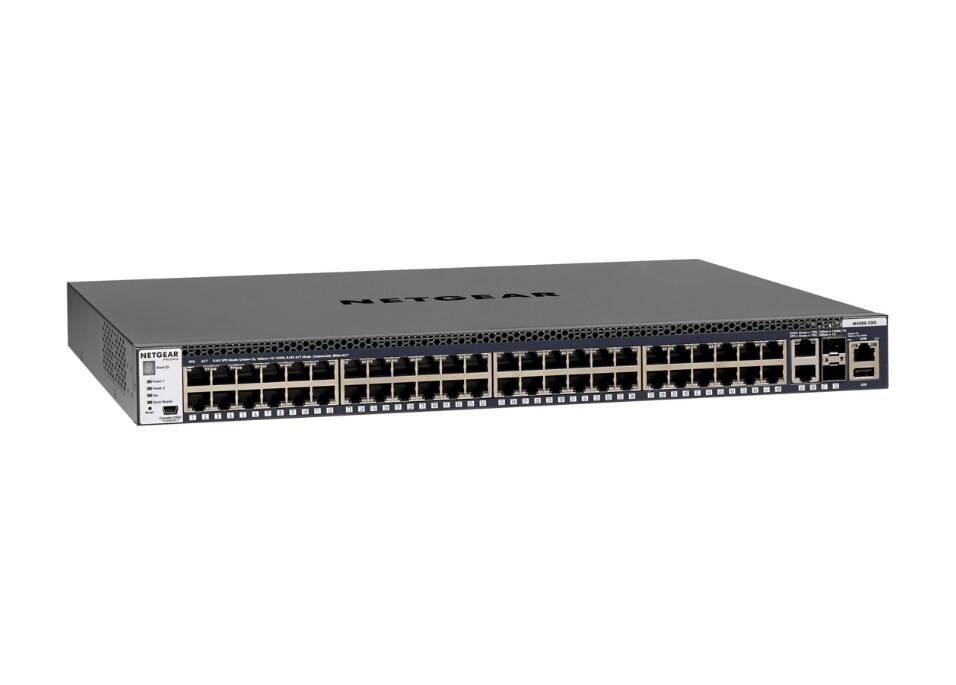

GSM4352S-100NES NETGEAR 48-Port Fully Managed Switch Full-Width 48x1G Stackable with 2x10GBASE-T and 2xSFP+
The NETGEAR M4300 Switch Series delivers L2/L3/L4 and IPv4/IPv6 rich services for enterprise edge and SMB aggregation deployments with unrivaled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series. Non-stop forwarding virtual chassis architecture provides advanced High Availability (HA) with hitless failover, that is, distributed link aggregation allows for load balancing and virtually zero downtime. License-free L3 feature set includes static routing, policy-based routing, RIP, VRRP, OSpiv as well as Multicast PIM routing. The NETGEAR M4300 Switch Series is ready for the future, with Software-defined Network (SDN) and OpenFlow 1.3 enabled for your network.
M4300-52G comes with 48 ports 1G, 2 ports 10GBASE-T and 2 ports 10GBASE-X SFP+ in a full-width form factor. All 4 ports 10G are independent and can be used for stacking or uplinks: they are 1G backward compatible. M4300-52G is delivering resilient and secure access layer in campus LAN environments and commercial buildings. Ideal for server and storage applications: 1+1 PSU protection and front to back cooling ensure hot and cold aisle compliance.
48 x Gigabit access ports
2 x 10GBASE-T, 2 x 10GBASE-X SPF+ uplink
Independent 10G ports
1G backward compatible
172 Gbps non-blocking fabric
Auto-iSCSI prioritization
Layer 3 feature: static, policy-based and dynamic routing
Dual redundant, modular power supplies
All (4) 10G ports are independent and 1G backward compatible for progressive transition to 10G speeds
With 172Gbps non-blocking fabric, M4300-52G delivers L2/L3/L4 and IPv4/IPv6 rich services for virtualization (Auto-iSCSI prioritization), wireless access layer, IP video and unified communications
Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover for highest availability (HA)
1 Gigabit models such as M4300-52G seamlessly stack with 10 Gigabit models enabling line-rate spine and leaf topologies
Dual redundant, modular power supplies contribute to business continuity management
Lifetime hardware warranty, Lifetime Next Business Day and Lifetime online technical chat for investment protection and post-sales support
ModelBrand : NETGEAR
Series : ProSafe
Model : GSM4352S-100NES
Format & StandardsFormat : Stackable
Network Management Type : Managed
Ports & InterfacePrimary Ports : 48-port 1000BASE-T (RJ45)
2-port 10GBASE-T (RJ45) all independent
2-port 10GBASE-X (SFP+) all independent
Data TransmissionMAC Address Table : 16K
VLAN Support : Yes
DetailsBuffer Memory : 16MB
Protocols : TCP/IP
Stackable : Yes
SNMP : Yes
QoS : Yes
LACP : Yes
Port Mirroring : Yes
LEDs : Speed, Link, Activity
Power : Power Consumption: 47.4W max
FeaturesFeatures : 48-port 1000BASE-T (RJ45)
2-port 10GBASE-T (RJ45) all independent
2-port 10GBASE-X (SFP+) all independent
176 Gbps non-blocking fabric across 52 ports
Out-of-band 1G Ethernet Management port
Mini-USB and RJ45 RS232 console ports and USB storage port
Full L3 feature set and non-stop forwarding (NSF) stacking
Full width form factor with one-unit rack mount kit
Ships with one modular APS150W PSU in first power supply slot
Ship with a blank cover in the second power supply slot
Low acoustics (31.5 dB @ 25 degree C / 77 degree F)
Dimensions & Weight : 1.73″ x 17.32″ x 12.20″
Weight : 10.81 lbs.
Manufacturer: Electronic Components
MFG Part #: GSM4352S-100NES
