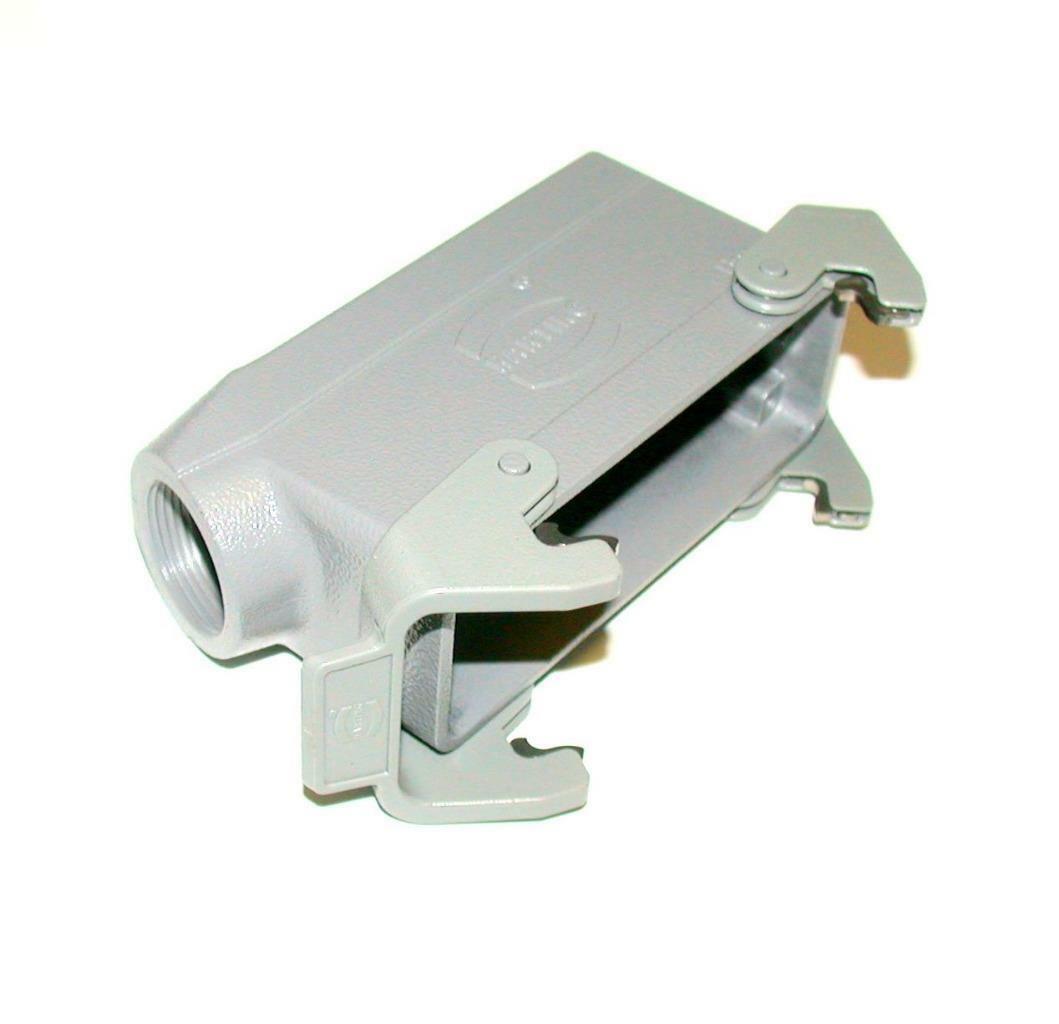

HARTING 09300241530 HOOD HAN2 4B SIDE ENTRY PG21 RoHS
Part number: 09 30 024 1530
Description: Han B Hood Side Entry LC 2 Levers PG 21
Type sheet: PDF PDF
Features
Han-Easy Lock®: Yes
RoHS conformity: Yes
Size: 24 B
Material, locking lever: polycarbonate + stainless steel
Lever type: double locking lever
Type of hood/housing: Hoods
Series: Han® B
Limiting temperature, min.: -40 °C
Limiting temperature, max.: 125 °C
Top
Material properties
Colour, locking element: RAL 7037 (grey)
Surface, hood/housing: powder-coated
Material, seal: NBR
Colour, hood/housing: RAL 7037 (grey)
Material, hood/housing: aluminium die-cast
Top
Dimensions and weight
Net Weight: 270.2 g
Top
Version
No. of cable entries: 1
Size: Pg 21
Cable entry: side entry
Style: Low construction
Top
Norms and specifications
Flammability locking lever acc. to UL 94: V 0
Protection class acc. to UL 50: NEMA type 4/4X/12
Approval GL: Yes
Degree of protection acc. to DIN EN 60 529: IP65
The Harting Technology Group offers a wide range of interconnect solutions for Electrical, Electronics, Optical, Transmission and Networking applications.The Harting series of HAN connectors has long been the defacto standard for Industrial Heavy Duty interconnect. If you or your equipment is subjected to harsh environmental conditions the HAN family of interconnect solutions should be at the top of your requirements.HAN offers a superior contact housing, sealing and locking mechanism to protect your interconnect from external influences such as mechanical shock, foreign bodies, humidity, dust, water or other fluids such as cleansing and cooling agents, oils, etc.
Manufacturer Part Number: 09-30-024-1530
