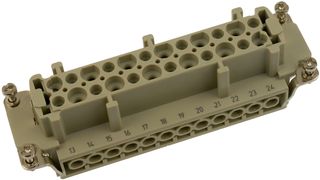

Harting Technology 09 33 024 2701 Heavy Duty Power Connector Han E 24 Position Female 500 V Insert Screw Terminal
Han E® Inserts
Poles: 6-48 (screw connection – wire csa 2.5mm²
The 32 and 48 pole versions require two contact inserts per connector half; a standard insert numbered ’1 to 16’ or ’1 to 24’ pole insert (m) or (f) together with one numbered ’17 to 32’ or numbered ’25 to 48’ insert (m) or (f).
These are identified in the price table – e.g. 32P + E (17 – 32)
Approvals
UL, CSA, SEV
Han E® 16A Screw Series
These Han E® inserts are rated at 16A. They are intended for use with hoods and housings. All these hoods and housing ranges are associated to a specific Harting ’Size’ number identifier. See the ’compatibility’ table for details of this relationship, and stock numbers of hoods and housings that are typical of each range.
| Compatibility | ||||||
| Hood and Housing relationship | ||||||
| Poles | 6+PE | 10+PE | 16+PE | 24+PE | 32+PE | 48+PE |
| RS Range No. | 5 | 6 | 7 | 8 | 9 | 10 |
| Harting ’Size’ | 6B | 10B | 16B | 24B | 32B | 48B |
Manufacturer Part Number: 9330242701
HARTING
