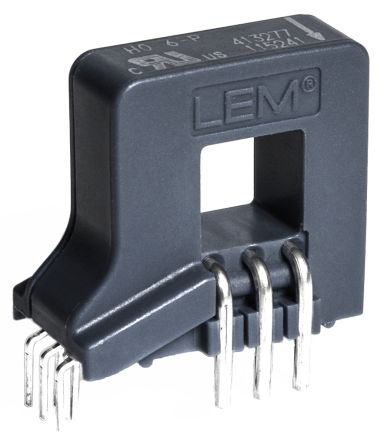

HO 120-P-0100 Lem PCB Current Transducer, 120A 5V Module

Description

HO 120-P-0100 Lem PCB Current Transducer / Sensor 120A 1 Channel Hall Effect, Open Loop Bidirectional Module, Single Pass 300A Input, 19-25mA Output, 300:1 Through Hole RoHS
LEM HO-P series multi-range current transducers for the electronic measurement of current. The HO-P series can measure dc, ac and pulsed current with galvanic separation between the primary and the secondary circuit.

Specifications
Manufacturer LEM
Current Ratio 300:1
Bore Size 15 x 8mm
Sensor Technology Open Loop
Supply Voltage 4.5 to 5.5 V
Input Current 300A
Output Current 19 to 25 mA
Overall Height 29.75mm
Overall Width 42.83mm
Overall Depth 18mm
Minimum Temperature -40C
Maximum Temperature +105C
Mounting Type Panel Mount
Series HO
Country of Origin CH
Sensor Type: Hall Effect, Open Loop
HOXX-P-
7 ranges: 60 ARMS, 100 ARMS, 120 ARMS, 150 ARMS, 180 ARMS, 240 ARMS, 250 ARMS. Overcurrent detection on a dedicated pin, Short response time, Access to voltage reference, Low offset and gain drift, Measuring range up to 2.5 x IPN, Small design (22 (W) x 43 (L) x 30 (H)), High accuracy at 25°C: 1% of IPN & at 105°C: 4.6% of IPN, Creepage & clearance distances: 8 mm + CTI 600

HO 120-P-0100
120 ARMS, Overcurrent detection set @ 2.93 x IPN on a dedicated pin,Short response time: 3.5 µs,Access to voltage reference 2.5 V

Series HOxx-P-
Measurement Current
Nominal Value 120 A
Measuring Range 300 A
Second. Nominal Signal Voltage
Second. Nominal Signal Value
Instantaneous 2.5 +/- 0.8 V
Primary Signal AC + DC
Supply Voltage
External DC Unipolar
Supply Voltage Range 5 – 5 V
Accuracy 1 %
Op. Temperature -40 °C / 105 °C
Technology Open loop Hall effect
Mounting PCB
Applications
Drives
Power Supplies
Renewable Energies
Welding
