Description

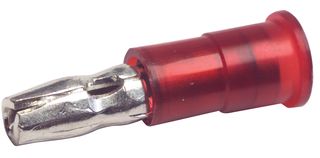

HOFFMAN PRODUCTS FVDGM2216T-5 TERMINAL, MALE BULLET, CRIMP, RED
The FVDGM2216T-5 is an Insulated Male Bullet, FVDGM series, for quick, fast and efficient splicing. Made of tin-plated brass terminal with copper support sleeve, PVC vinyl insulation.
300V Voltage rating
10A Current rating
Product Specifications
Bullet Diameter: 3.96mm
Connector Type: Male Bullet
Contact Material: Brass
Contact Plating: Tin
Insulator Color: Red
Insulator Material: Vinyl
Product Range: FVDGM Series
SVHC: To Be Advised
Stud/Tab Size: 3.96mm
Terminal Material: Brass
Terminal Plating: Tin
Terminal Type: Male Bullet
Termination Method: Crimp
Wire Size AWG Max: 16AWG
Wire Size AWG Min: 22AWG
Manufacturer:Electronic Components
Datasheet:Hoffman/Hoffman.pdf
