Description

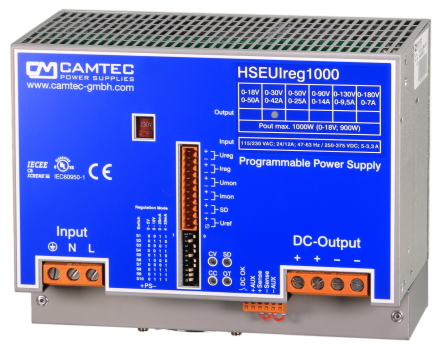

HSEUIREG10001.90T Camtec Power Supplies GmbH 1000W 90 VDC 14 A Lab Power Supply, Programmable RoHS
Technical features
Multifunctional analogue Interface 0-5V/0-10V/0-20mA/4-20mA
Real Time Monitoring
Output Voltage Range 90 VDC
Nominal power 1 kW
Output current 14 A
Input voltage AC 90 – 132, 184 – 265 VAC
efficiency 90 %
min. ambient temperature -25C
max. ambient temperature 70C
Width 200 mm
Height 130 mm
Depth 114 mm
(DC) 90 VDC
14 A
MTBF 400000 h
Manufacturer Part Number: HSEUIREG10001.90T
Manufacturer: Camtec
