Description

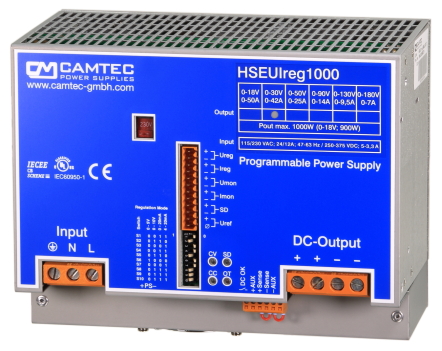

HSEUIREG10001.90TPS Camtec Power Supplies GmbH 1000W 90 VDC 14 A Lab Power Supply, Programmable RoHS
Technical features
Multifunctional analogue Interface 0-5V/0-10V/0-20mA/4-20mA
Real Time Monitoring
Output Voltage Range90 VDC
Nominal power1 kW
Output current14 A
Input voltage AC90 – 132, 184 – 265 VAC
efficiency90 %
min. ambient temperature-25C
max. ambient temperature70C
Width200 mm
Height130 mm
Depth114 mm
(DC)90 VDC
14 A
MTBF400000 h
Manufacturer:Camtec
Datasheet:Camtec/HSEUIREG10001_30T.pdf
