Description
HTS221TR STMicroelectronics Humidity/Temperature Sensor 1.7-3.6V Digital Serial (SPI, I2C 6-HLGA RoHS

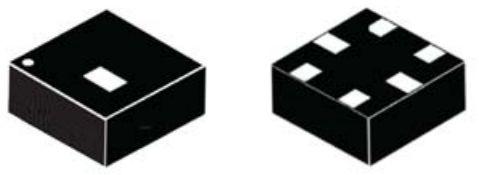

The HTS221 is an ultra compact sensor for relative humidity and temperature. It includes a sensing element and a mixed signal ASIC to provide the measurement information through digital serial interfaces.The sensing element consists of a polymer dielectric planar capacitor structure capable of detecting relative humidity variations and is manufactured using a dedicated ST process.The HTS221 is available in a small top-holed cap land grid array (HLGA) package guaranteed to operate over a temperature range from -40 C to +120 C.
Specifications
Manufacturer:STMicroelectronics
Product Category:Board Mount Humidity Sensors
RH Range:0 % to 100 %
RH Accuracy:+/- 4.5 %
Mounting Style:SMD/SMT
Output Type:Digital
Interface Type:I2C, SPI
Resolution:16 bit
Operating Supply Current:2 uA
Supply Voltage – Min:1.7 V
Supply Voltage – Max:3.6 V
Minimum Operating Temperature:- 40 C
Maximum Operating Temperature:+ 120 C
Package / Case:HLGA-6L
Packaging:Cut Tape
Packaging:Reel
Series:HTS221
Brand:STMicroelectronics
Moisture Sensitive:Yes
Operating Supply Voltage:1.7 V to 3.6 V
Product Type:Humidity Sensors
Factory Pack Quantity:8000
Subcategory:Sensors
Unit Weight:0.002363 oz
Manufacturer:STMicroelectronics
Datasheet:STMicro/hts221.pdf
