Description

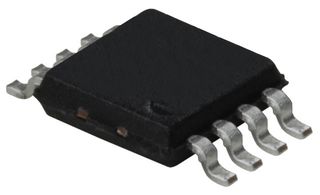

NVE Corporation IL610A-3E IC, DIGITAL ISOLATOR, 20NS, NSOIC-8, No. of Channels:1, Propagation Delay:20ns, Supply Voltage Min:3V, Supply Voltage Max:5.5V, Interface Case Style:SOIC, No. of Pins:8, Operating Temperature Min:-40C, Operating Temperature Max:85C, RoHS
The IL610A-3E is a passive input Digital Isolator with open drain outputs. It has a similar interface but better performance and higher package density than optocouplers. It is manufactured with NVE’s patented* IsoLoop® spintronic Giant Magnetoresistive (GMR) technology for small size, high speed and low power. Unique ceramic/polymer composite barrier provides excellent isolation and virtually unlimited barrier life. A resistor sets the input current; a capacitor in parallel with the current-limit resistor provides improved dynamic performance. This versatile component simplifies inventory requirements by replacing a variety of optocouplers, functioning over a wide range of data rates, edge speeds and power supply levels.
- 10Mbps data rate
- Flexible inputs with very wide input voltage range
- Failsafe output (logic high output for zero coil current)
- No carrier or clock for low EMI emissions and susceptibility
- 1000VRMS/1500VDC High voltage endurance
- 44000 Year barrier life
- Low power dissipation
Manufacturer:Electronic Components
Datasheet:1914691.pdf
