Description

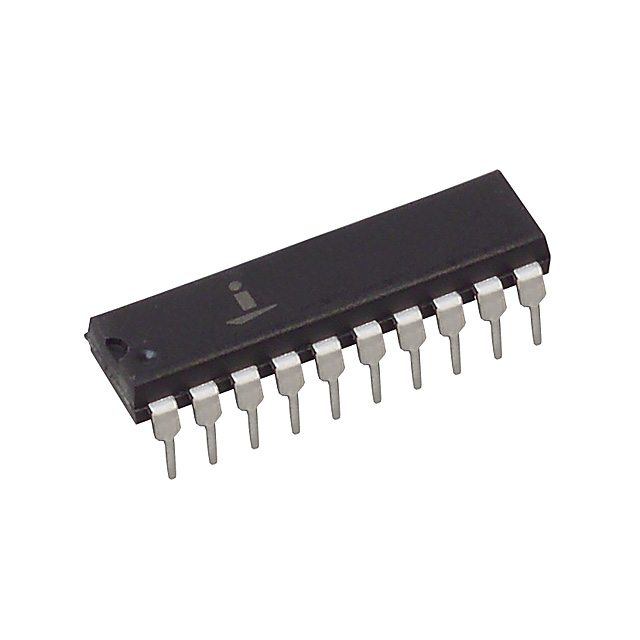

INTERSIL ADC0804LCN Intersil Corporation Analog to Digital Converter Single SAR 10K Single Pole 8 Bit Parallel 20 Pin Mdip Rail ADC0804LCN ADC 8 -BIT 10KSPS 1LSB 20Pins
The ADC080X family are CMOS 8-Bit, successive- approximation A/D converters which use a modified potentiometric ladder and are designed to operate with the 8080A control bus via three-state outputs. These converters appear to the processor as memory locations or I/O ports, and hence no interfacing logic is required. The differential analog voltage input has good common- mode-rejection and permits offsetting the analog zero-input- voltage value. In addition, the voltage reference input can be adjusted to allow encoding any smaller analog voltage span to the full 8 bits of resolution.
Manufacturer:Intersil
Datasheet:adc0803-04.pdf
