Description

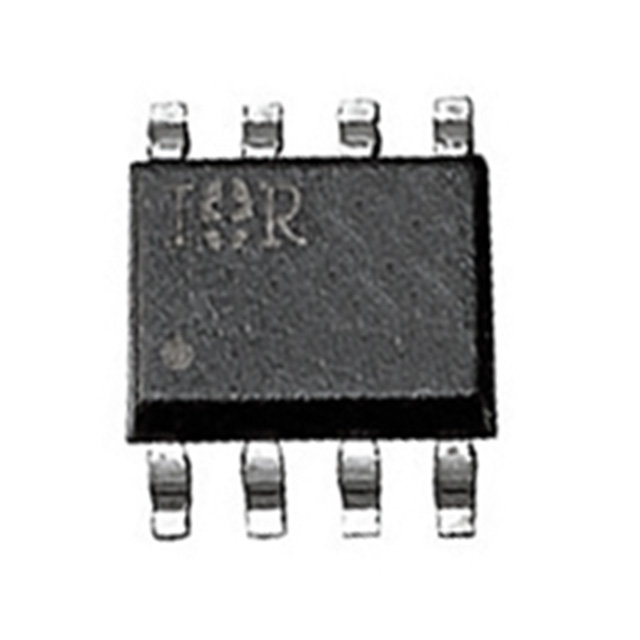

IR2181STRPBF HIGH AND LOW SIDE DRIVER, SOFTTURN-ON, NONINVERTING INPUTS, SEPARATE HIGH AND LOW
Part Details
Package 8SOIC
Driver Type High and Low Side
Driver Configuration Non-Inverting
Number of Outputs 2
Maximum Operating Supply Voltage 20 V
Minimum Operating Supply Voltage 10 V
Peak Output Current 2.3 A
Maximum Power Dissipation 625 mW
Input Logic Compatibility CMOS|LSTTL|3.3V(Min )|5V
Maximum Rise Time 60 ns
Maximum Turn-On Delay Time 270 ns
Maximum Fall Time 35 ns
Maximum Turn-Off Delay Time 330 ns
Operating Temperature -40 to 125 °C
Mounting Surface Mount
Category MOSFET and Power Drivers
Manufacturer International Rectifier
Manufacturer Part Number: IR2181STRPBF
Manufacturer: Electronic Components
