Description

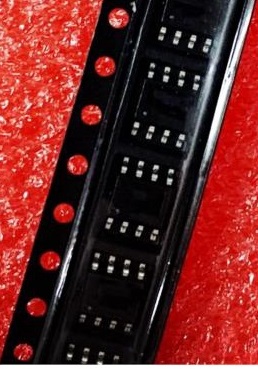

IR11682STRPBF Infineon Power Supply Controller Secondary-Side Controller, Synchronous Rectifier 8.6-18V 48mA 8-SOIC RoHS
Specifications
Manufacturer: Infineon
Product Category: Gate Drivers
Product: Driver ICs – Various
Type: Half-Bridge
Mounting Style: SMD/SMT
Package / Case: SOIC-8
Number of Drivers: 2 Driver
Number of Outputs: 2 Output
Output Current: 1 A
Supply Voltage – Min: 8.6 V
Supply Voltage – Max: 18 V
Configuration: Half-Bridge
Rise Time: 80 ns
Fall Time: 25 ns
Minimum Operating Temperature: – 25 C
Maximum Operating Temperature: + 125 C
Packaging: Reel
Packaging: Cut Tape
Brand: Infineon / IR
Height: 1.57 mm
Length: 4.98 mm
Maximum Turn-Off Delay Time: 120 ns
Maximum Turn-On Delay Time: 200 ns
Moisture Sensitive: Yes
Operating Supply Current: 48 mA
Output Voltage: 200 V
Pd – Power Dissipation: 970 mW
Product Type: Gate Drivers
Reel:2500
Subcategory: PMIC – Power Management ICs
Technology: Si
Width: 3.99 mm
Part # Aliases: IR11682STRPBF SP001553776
Unit Weight: 0.019048 oz
Manufacturer:Infineon Technologies
Datasheet:ir11682spbf.pdf
