Description

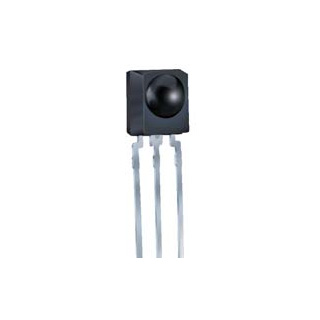

IRM-3638L Everlight IR Remote Receiver 38KHz 14m 3-Pin Box Through Hole
The IRM-3638L is miniaturized receivers for infrared remote control systems. PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as IR filter. The demodulated output signal can directly be decoded by a microprocessor. IRM-3638L is the standard IR remote control receiver series, supporting all major transmission codes.
Part Status Obsolete
Sensing Distance 14m
B.P.F. Center Frequency 38.0kHz
Voltage – Supply 2.7V to 5.5V
Current – Supply 330uA
Orientation Side View
Mounting Type Through Hole
Operating Temperature -20C ~ 80C (TA)
Manufacturer:Everlight
Datasheet:Everlight/IRM-3638L.pdf
