Description

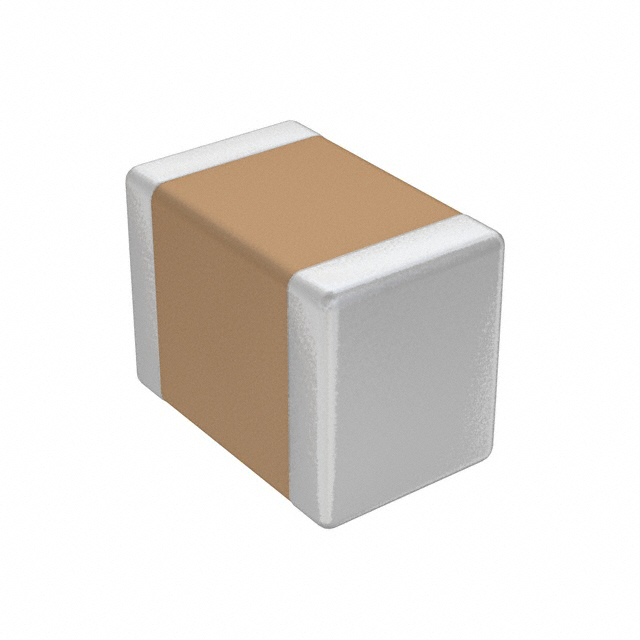

Johanson Dielectrics 500R15W104KV4T Ceramic Capacitor 500R15W104KV4T Capacitance: 10000pF ; Voltage Rated: 50V ; Tolerance: ±10% ; Package / Case: 0805 (2012 Metric) ROHS
| Specifications | |
| Configuration / Form Factor | Chip Capacitor |
| Technology | Multilayer |
| Applications | General Purpose |
| Electrostatic Capacitors | Ceramic Composition |
| Mounting Style | Surface Mount Technology |
| Operating Temperature | -55 to 85 C (-67 to 185 F) |
| Features, Applications |
|
TANCERAM® chip capacitors can replace tantalum capacitors in many applications and offer several key advantages over traditional tantalums. Because Tanceram® capacitors exhibit extremely low ESR, equivalent circuit performance can often be achieved using considerably lower capacitance values. Low DC leakage reduces current drain, extending the battery life of portable products. Tancerams® high DC breakdown voltage ratings offer improved reliability and eliminate large voltage de-rating common when designing with tantalums. · Low ESR Higher Surge Voltage Reduced CHIP Size Higher Insulation Resistance· Low DC Leakage Non-polarized Devices Improved Reliability Higher Ripple Current Applications · Switching Power Supply Smoothing (Input/Output)· DC/DC Converter Smoothing (Input/Output)· Backlighting Inverters· General Digital Circuits |
Manufacturer:Johanson Dielectrics
Datasheet:Others/500R15.pdf
