Description

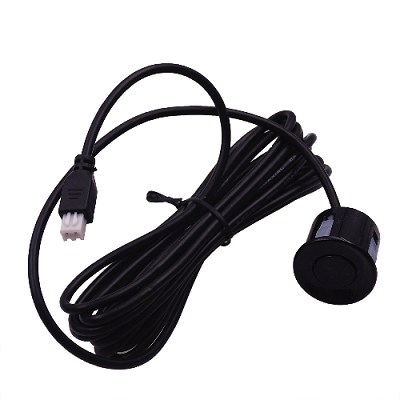

Ultrasonic Module JSN-SR04T (AJ-SR04M) Integrated Distance Measuring Transducer Sensor
Features
Small size, easy to use
Low voltage, low power consumption
High accuracy
Strong anti-jamming
Integrated with wire enclosed waterproof probe, suitable for wet, harsh measurement environments
Specifications
Working voltage: DC 3 V to 5.5 V
Static working current: Working current: 30 mA
Acoustic emission frequency: 40 KHz
Farthest distance: 600 cm
Nearest distance: 20 cm
Distance accuracy: 1 cm
Module size: 42 mm x 29 mm x 12 mm
Resolution: about 1 mm
Angle: 75 degrees
This is a Water Proof Ultrasonic Ranger, it has the same usage of HC-SR04, those are non-contact distance measurement module, it provides high accuracy and high resolution ultrasonic proximity detection and ranging in air. This ultrasonic sensor detects objects from 20cm to 600cm.
Manufacturer Part Number: JSN-SR04T(AJ-SR04M)
Manufacturer: Electronic Components
