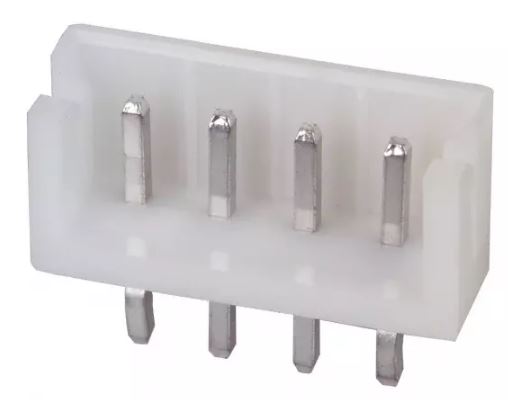

JST B4B-EH-A(LF)(SN) Shrouded Header 4POS 2.5MM

JST B4B-EH-A/LF/SN Connector EH Series 4 Position 2.5 mm Pitch Crimp Straight Top Entry Shrouded Header

ENQUIRY!
SKU: B4B-EH-A(LF)(SN) Categories: , Tag: Brand:

Description

JST (JAPAN SOLDERLESS TERMINALS) B4B-EH-A(LF)(SN) Wire-To-Board Connector, EH Series, 4 Contacts, Header, 2.5 mm, Through Hole, 1 Rows

The B4B-EH-A(LF)(SN) is a 4-way crimp style Header Connector. The B4B-EH-A(LF)(SN) is 8.1mm in height after mounting and 3.8mm in width. It is designed to meet the demand for the high-density connection of internal wires to printed circuit boards. It is compact, highly reliable and low in cost.
  • Top Entry Type
  • Compact and Slim
  • Highly Reliable Contact
  • Polarizing Guides
  • Easy and Effective Crimping
  • 3.0AAC/DC Current Rating
  • 250VAC/DC Voltage
  • -25 to +85°C Temperature Range
  • 1000MR Insulation Resistance
  • 800VAC/Minute Withstanding Voltage

Applications

Industrial

EH Shrouded Headers from JST are the thinnest 2.5 mm (.098”) pitch connectors. With a height of 8.1MM(.319”) after mounting and 3.8mm (.150”)in width this disconnectable crimp style connector is designed for high density connection. This compact, highly reliable connector is perfect for internal wire designs for the printed circuit board applications.

B4B-EH-A/LF/SN is 4 position top entry Shrouded Header. This particular Shrouded header comes in white. The shrouded Header is interchangeable with those of the HR crimp style and insulation displacement connectors.
Manufacturer:JST
Datasheet:JST/eEH.pdf
