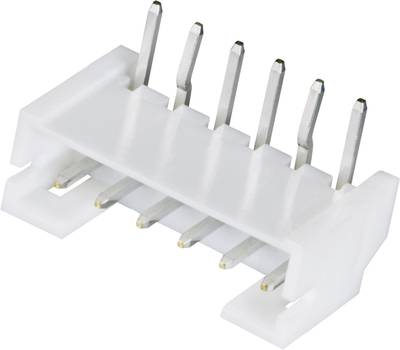

JST S7B-PH-K-S (LF)(SN) Wire-To-Board Connector, Side Entry, Ph Series, Through Hole, Header, 7, 2 Mm, Tin Plated Contacts Rohs Compliant
Angled Series PH Number of Nominal current (details): 2 A
^^Detachable connection of cable at printed circuit board The catch bar at casing allows an audible click while plugging. A circular trough at the plug connector allows a reverse voltage protection. Can be soldered very well due to pre-tin coating
Technical data
Connector type Pin strip, right angle
Connectors wire-to-board
Series PH
CS 2 mm
Pins per row 7
Total number of pins 7
Pin diameter 0.5 mm
Pin shape Square
Nominal current 2 A
Nominal current – rounded value 2 A
Content 1 pc(s)
Dim (L x W x H) 15.9 x 4.5 x 9.4 mm
Colour Ecru
Height 9.4 mm
Length 15.9 mm
Width 4.5 mm
Industrial packaging No
Connection Print
Connector contact surface Tin plated
Board contact surface Tin plated
Connector orientation Parallel (to the PCB)
Manufacturer part # S7B-PH-K-S (LF)(SN)
Type S7B-PH-K-S (LF)(SN)
Material (details) PA 66 UL94V-0
Type Connector pin strip, straight
Insulation material Polyamide
Nominal voltage (details) voltage:100 V AC
Nominal current (details) 2 A
No. of rows 1
Cross section 0.05 – 22 mm²
Number of pins 7
Connection Crimp
Contact material Phosphor bronze
Case material Polyamide
RoHS-compliant Yes
Product type Built-in pin strip (standard)
Manufacturer: JST
MFG Part #: S7B-PH-K-S(LF)(SN)
