Description

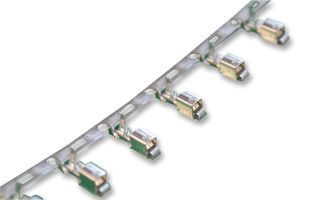

JST Connector SVH-41T-P1.1 CONTACT, SOCKET, 20-16AWG, CRIMP, Product Range:VH Series, For Use With:VH Series Housing Connectors, Current Rating:10A, Contact Plating:Tin, Contact Material:Phosphor Bronze, Contact Gender:Socket, Contact Termination Type:Crimp, , RoHS
This small, field-proven connector for printed circuit boards is reliable and has a large current carrying capacity. It can be used with a wide variety of signal, power supply, and output circuits that appear in consumer electronic products.
Technical Attributes
Type: Contact
Contact Termination: Crimp Terminal
Wire Gauge: AWG 16-20
Contact Plating: Tin
Insulation Resistance: 1000MΩ
Operating Temp Range: -25°C to +85°C
Voltage Rating: 250V
Mounting Method: Wire Mount
Features & Applications
The SVH-41T-P1.1 is a part of NV Series 5.0 mm Pitch 16-20 AWG Contact Crimp Style Connector.
Features:
Side stackable
Box contact
Compact connector with a large capacity
Secure contact and mounting
Product Specifications:
Pitch: 5.0 mm
Current rating: 10 A
Voltage rating: 250 V
Temperature range: -25°C to +85°C
Insulation resistance: 1000 M?
Manufacturer:JST
Datasheet:SVH-41T.pdf
