Description

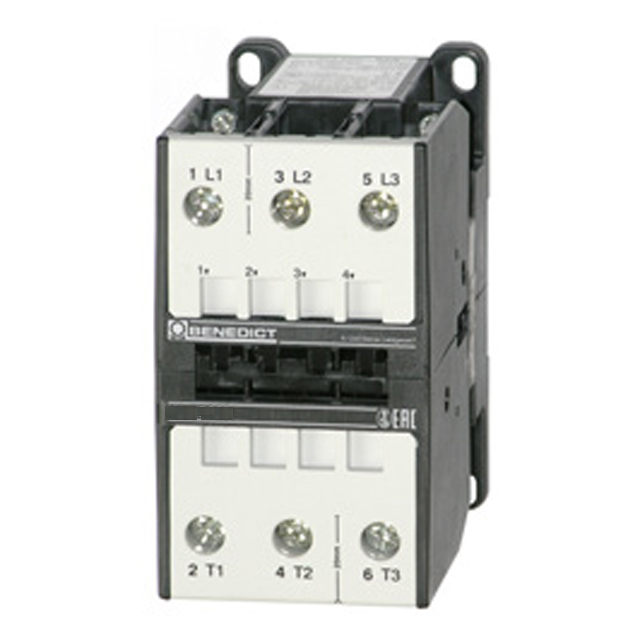

Benedikt & Jaeger K3 contactor, nom. coil voltage Us at AC 50Hz 24V, nom. coil voltage Us at AC 60Hz 24V, coil voltage AC, nom. operating current Ie at AC-1, 40 80A, nom. operating current Ie at AC-3, 40 40A, nom. power at AC-3, 400 V 18.5kW,
Specifications
Type of coil voltage AC
Nom. operating current Ie at AC-1, 400 V 80 A
Nom. operating current Ie at AC-3, 400 V 40 A
Nom. power at AC-3, 400 V 18.5 kW
Modular design (for rail mounting) N
Connection mode main current circuit Screw connection
Number of main contacts as make contact 3
Nom. (measure) frequency 50 Hz
3-pole contactor 18.5kW 40A 24V AC K3-40A00 24
3-field version
control voltage: 24V AC
current carrying capacity: 40A for category AC3
current carrying capacity: 80A for AC1 category (690V, 40)
power consumption when switching the AC coil: 90-115VA
power consumption – supporting the AC coil: 9-13VA
power consumption by the AC coil: 2.7-4W
Coil control voltage range: (0.85-1.1) xUn
Working temperature range: -40- + 90C
mechanical durability: 10×10 6 switches
mounting on TS35 rail
small size of contactors
a wide range of accessories
Manufacturer Part Number: K3-40A00-24V
Manufacturer: Electronic Components
