Description

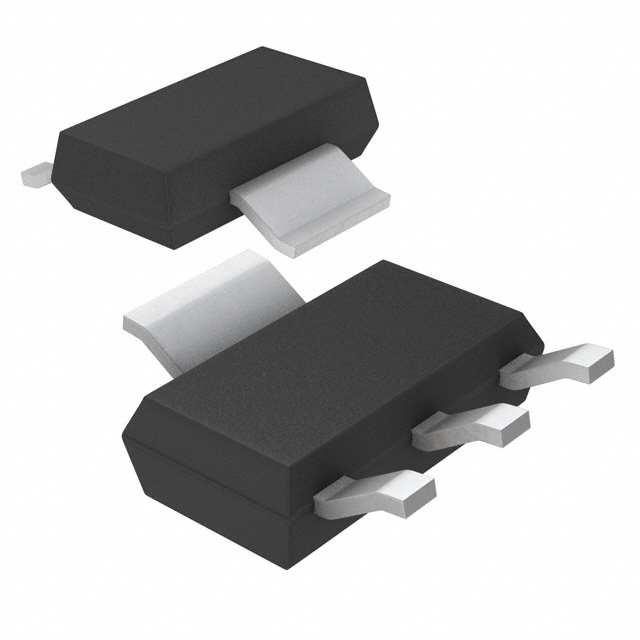

LD1117S33TR STMicroelectronics Voltage regulator, LDO, linear, fixed, 3.3V, 0.95A, SOT223, SMD
Specifications
Number of Outputs 1
Output Voltage 3.3 V
Input Voltage Range 15 V
Maximum Output Current 1.3 A
Load Regulation 10 mV
Product Dimensions 6.5 x 3.5 x 1.8 mm
Supplier Package SOT-223
Line Regulation 6 mV
Typical Dropout Voltage @ Current 1@100mA|1.05@500mA|1.1@800mA V
Screening Level Extended
Typical Quiescent Current 5 mA
Maximum Dropout Voltage @ Current 1.1@100mA|1.15@500mA|1.2@800mA V
Function LDO
Maximum Input Voltage 15 V
Polarity Positive
Max Processing Temp 260
Maximum Power Dissipation 12000 mW
Junction to Ambient 110C/W
Maximum Quiescent Current 10 mA
Junction to Case 15C/W
Accuracy 1 %
Mounting Surface Mount
MSL Level 1
Pin Count 4
Output Type Fixed
Lead Finish Matte Tin
Operating Temperature 0 to 150C
Manufacturer Part Number: LD1117S33TR
Manufacturer: STMicroelectronics
