Description

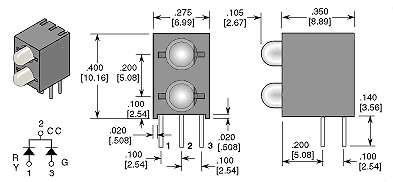

Ledtronics 21PCD130TWRG4-3-C LED T1 (3MM) RIGHT-ANGLED TRICOLOR PCB LEDS
Features:
Single Tri-Color PCB Replaces Three Single Color PCBs
Space Saving Design
Solid-State, High Shock / Vibration Resistant
High Intensity Wide Angle Illumination
Long Life / 100,000+ Hours
Fast Turn On/Off Time I.C. Compatible
Black Nylon Plastic Block Meets UL 94V-0 and Bellcore Flammability Specifications
Options: For qualified applications and large quantity orders
Sunlight Visible
Ultrabrights
Low Current (2mA) LEDs
5mm LED Versions
Tri-Color Clear Illuminators
Applications:
Circuit Status / Logic
Status Fault Indicator
PCB Mounted Panel Indicator
Telecom, Datacom
SPECIFICATIONS
Part #: 21PCD130TWRG4-3C
Part Category: Optoelectronics
Manufacturer: LEDtronics, Inc.
Description: Dual Color LED Array, High Efficiency Red/green, Milky White, T-1, 3mm
Optoelectronic Device Type DUAL COLOR LED ARRAY
Color HIGH EFFICIENCY RED/GREEN
Color@wavelength Green/Red
Configuration COMMON CATHODE, 2 ELEMENTS
Forward Current-Max 0.02 A
Forward Voltage-Max 2.6 V
Lens Type MILKY WHITE
Luminous Intensity-Min 0.025 cd
Luminous Intensity-Nom (mcd) 25.0/35.0
Manufacturer:Ledtronics
Datasheet:LEDTS02879-1.pdf
