Description

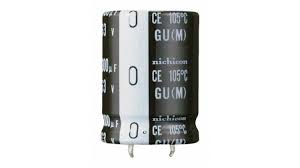

LGU2E331MELA Nichicon Aluminum Electrolytic Capacitor 330uF 250V 20% (25 X 30mm) Snap-In 10mm 1300mA 3000h 105C Bulk Radial RoHS
Specifications
Manufacturer: Nichicon
Product Category: Aluminum Electrolytic Capacitors – Snap In
Product: Aluminum Electrolytic Capacitors
Termination Style: Snap In
Capacitance: 330 uF
Voltage Rating DC: 250 VDC
Tolerance: 20 %
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 105 C
Diameter: 25 mm
Length: 30 mm
Lead Spacing: 10 mm
Life: 3000 Hour
Ripple Current: 1300 mA
Series: LGU
Packaging: Bulk
Brand: Nichicon
Leakage Current: 860 uA
Product Type: Electrolytic Capacitors
Factory Pack Quantity: 250
Subcategory: Capacitors
Part # Aliases: EET-ED2E331CA ECO-S2EB331CA
Unit Weight: 0.758002 oz
Nichicon LGU Series — Snap-in Terminal Type, 105°C Standard Size:
Nichicon’s LGU Series is a standard 105°C snap-in aluminum electrolytic capacitor that can withstand 3,000 hours of rated ripple current with voltage ranging from 16 to 450V and capacitance ranging from 47-47000uf. LGU capacitors have a wide temperature range that is ideal for uninterruptible power supplies, electric pump motors, and AC servomotors.
Nichicon developed the LGN & LGU series primarily for use in industrial machinery and high voltage inverter circuits. There is increasing demand for higher voltage resistance aluminum electrolytic capacitors for use in inverter power sources and other control circuitry. Because of advances being made in high voltage systems as a result of increasing demands for high-efficiency and energy conservation. Demand is particularly strong for solar and wind power generators in the renewable energy market.
Features:
Withstanding 3000 hours application of rated ripple current at 105°C.
Compliant to the RoHS directive (2002/95/EC)
Operating Temperature Range: – 40 to + 105°C (16 to 250V), – 25 to +105°C (315 to 450V)
Rated Voltage Range: 16 to 450V
Rated Capacitance Range: 47 to 47000µF
Capacitance Tolerance: ±20% at 120 Hz, 20°C
Manufacturer: Nichicon
MFG Part #: LGU2E331MELA
