Description

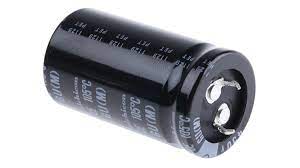

LGU2W221MELA Nichicon Capacitor Aluminum Electrolytic 220uF 450V 20% Snap-In 25X45mm, LGU Series 105C 3000 Hrs RoHS
Specifications
Manufacturer: Nichicon
Product Category: Aluminum Electrolytic Capacitors – Snap In
Product: Aluminum Electrolytic Capacitors
Termination Style: Snap In
Capacitance: 220 uF
Voltage Rating DC: 450 VDC
Tolerance: 20 %
Minimum Operating Temperature: – 25 C
Maximum Operating Temperature: + 105 C
Diameter: 25 mm
Length: 45 mm
Lead Spacing: 10 mm
Life: 3000 Hour
Ripple Current: 1120 mA
Series: LGU
Packaging: Bulk
Brand: Nichicon
Leakage Current: 940 uA
Product Type: Electrolytic Capacitors
Factory Pack Quantity: 250
Subcategory: Capacitors
Part # Aliases: EET-HC2W221JA EET-HC2W221CA EET-ED2W221CA ECO-S2WB221CA
Unit Weight: 1.305137 oz
Manufacturer:Nichicon
Datasheet:LGU2W221MELA.pdf
