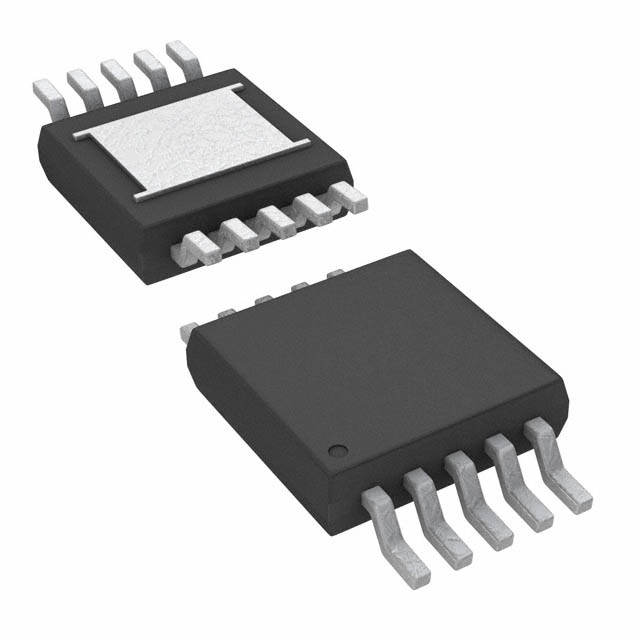

Linear Technology LTC3805EMSE-5#PBF LTC IC Current Mode Flyback DC / DC Controller SMT / SMD MSOP-10 RoHS
Output Type Transistor Driver
Function Step-Up, Step-Up/Step-Down
Output Configuration Positive, Isolation Capable
Topology Boost, Flyback, SEPIC
Number of Outputs 1
Output Phases 1
Voltage – Supply (Vcc/Vdd) 3.95 V ~ 9.5 V
Frequency – Switching 70kHz ~ 700kHz
Duty Cycle (Max) 80%
Synchronous Rectifier No
Clock Sync Yes
Serial Interfaces –
Control Features Enable, Soft Start
Operating Temperature -40°C ~ 85°C (TA)
Package / Case 10-TFSOP, 10-MSOP (0.118″, 3.00mm Width) Exposed Pad
Supplier Device Package 10-MSOP-EP
Ensure that all of the components within your circuit design receive the proper DC voltage by using Linear Technology’s flyback LTC3805EMSE-5#PBF DC voltage controller. This DC voltage controller has single output. With an output that has a voltage of 75(Max) V, this is power management at its best. This DC voltage controller has an input voltage of 4.5 to 75 V. It has a switching frequency of 70 to 700 kHz. This DC voltage controller has an operating temperature range of -40 °C to 85 °C.
Manufacturer:Linear Technology
Datasheet:3805fg.pdf
