Description

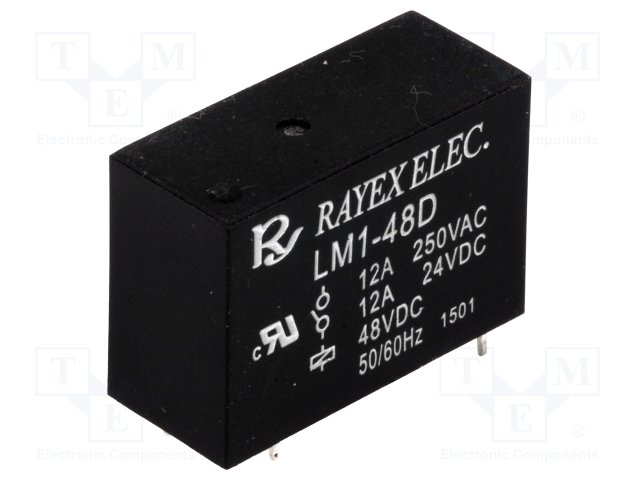

RAYEX ELECTRONICS LM1-48D Relay: electromagnetic; SPDT; Ucoil:48VDC; 12A/250VAC; 12A/30VDC ROHS
SPECIFICATION
Manufacturer RAYEX ELECTRONICS
Relay type electromagnetic
Contacts configuration SPDT
Rated coil voltage 48V DC
AC contacts rating
(at resistance load) 12 A / 250 VAC
DC contacts rating
(at resistance load) 12 A / 30 VDC
Contact current max. 12A
Switched voltage max 30V DC, max 250V AC
Relay variant miniature
Mounting PCB
Coil resistance 4.4kΩ
Operate time 15ms
Body dimensions 29 x 20.5 x 12.5mm
Release time 10ms
Coil power consumption 530mW
Operating temperature -40…80°C
Relay series LM1
Contact resistance 100mΩ
Contact material AgCdO
Terminal pitch 3.5mm
Coil current 10.9mA
Manufacturer:Electronic Components
Datasheet:LM-SERIES.pdf
