Description

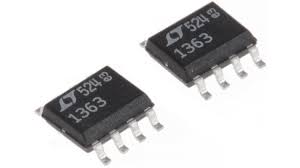

LT1363CS8#PBF Analog Devices High Speed Operational Amplifier Op Amp Single High Speed Amplifier 18V/36V 8-Pin SOIC N Tube RoHS
Specifications
Manufacturer: Analog Devices Inc.
Product Category: High Speed Operational Amplifiers
Series: LT1363
Number of Channels: 1 Channel
GBP – Gain Bandwidth Product: 70 MHz
SR – Slew Rate: 1000 V/us
CMRR – Common Mode Rejection Ratio: 90 dB
Output Current per Channel: 60 mA
Ib – Input Bias Current: 0.6 uA
Vos – Input Offset Voltage: 0.5 mV
Supply Voltage – Max: 36 V
Supply Voltage – Min: 3 V
Operating Supply Current: 6.3 mA
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 85 C
Mounting Style: SMD/SMT
Package / Case: SO-8
Packaging: Tube
Amplifier Type: High Speed
Height: 1.75 mm
Product: Operational Amplifiers
Brand: Analog Devices
Shutdown: No Shutdown
en – Input Voltage Noise Density: 9 nV/rtHz
Gain V/V: 9 V/mV
In – Input Noise Current Density: 1 pA/rtHz
Ios – Input Offset Current: 350 nA
Maximum Input Resistance: 50 MOhms
Product Type: Op Amps – High Speed Operational Amplifiers
PSRR – Power Supply Rejection Ratio: 100 dB
Factory Pack Quantity: 100
Subcategory: Amplifier ICs
Unit Weight: 0.003527 oz
Manufacturer: Analog Devices
MFG Part #: LT1363CS8#PBF
