Description

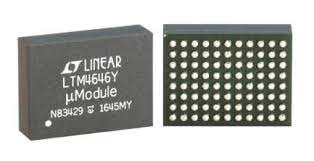

LTM4646EY#PBF Analog Devices / Linear Technology Switching Voltage Regulators Dual 10A or Single 20A DC/DC uModule Regulator Non-Isolated PoL Module DC DC Converter 2 Output 0.6 ~ 5.5V 0.6 ~ 5.5V – – 10A, 10A 4.5V – 20V Input BGA-88 RoHS
Specifications
Manufacturer: Analog Devices Inc.
Product Category: Switching Voltage Regulators
Mounting Style: SMD/SMT
Package / Case: BGA-88
Topology: Buck
Output Voltage: 600 mV to 5.5 V
Output Current: 20 A
Number of Outputs: 2 Output
Input Voltage MAX: 20 V
Input Voltage MIN: 4.5 V
Quiescent Current: 40 uA
Switching Frequency: 250 kHz to 1.3 MHz
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 125 C
Series: LTM4646
Packaging: Tray
Brand: Analog Devices
Input Voltage: 4.5 V to 20 V
Moisture Sensitive: Yes
Operating Supply Current: 3.9 A
Product Type: Switching Voltage Regulators
Subcategory: PMIC – Power Management ICs
Supply Voltage – Min: 4.5 V
Tradename: uModule
Type: uModule Regulator
Unit Weight: 0.279449 oz
Manufacturer: Analog Devices
MFG Part #: LTM4646EY#PBF
