Description

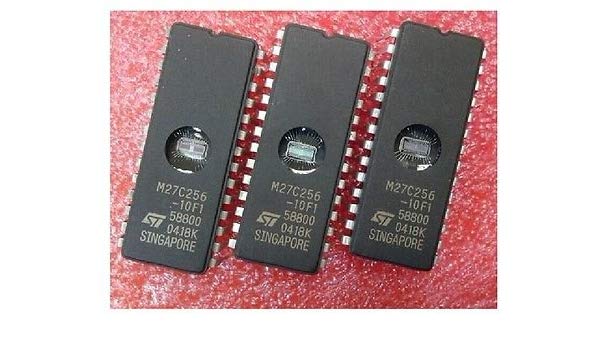

M27C256B-10F1 STMicroelectronics EPROM – UV Memory IC 256Kb (32K x 8) Parallel 100ns 28-CDIP Frit Seal with Window
The M27C256B is a 256 Kbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for microprocessor systems and is organized as 32,768 by 8 bits.The FDIP28W (window ceramic frit-seal package) has a transparent lid which allows the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written to the device by following the programming procedure.For applications where the content is programmed only one time and erasure is not required, the M27C256B is offered in PDIP28 and PLCC32 packages. In order to meet environmental requirements, ST offers the M27C256B in ECOPACK packages.ECOPACK packages are Lead-free. The category of second Level Interconnect is marked on the package and on the inner box label, in compliance with JEDEC Standard JESD97. The maximum ratings related to soldering conditions are also marked on the inner box label.
Specifications
Manufacturer: STMicroelectronics
Product Category: EPROM
RoHS
Mounting Style: Through Hole
Package / Case: FDIP-28W
Type: OTP, UV
Memory Size: 256 kB
Organization: 32 k x 8
Interface Type: Parallel
Operating Supply Current: 50 mA
Programming Voltage: 12.75 V
Supply Voltage – Min: 4.5 V
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 70 C
Series: M27C256B-10
Packaging: Tube
Access Time: 100 ns
Brand: STMicroelectronics
Operating Supply Voltage: 5 V
Output Enable Access Time: 50 ns
Product Type: EPROM
Factory Pack Quantity: 260
Subcategory: Memory & Data Storage
Lifecycle: Obsolete
Manufacturer Part Number: M27C256B-10F1
Manufacturer: STMicroelectronics
