Description

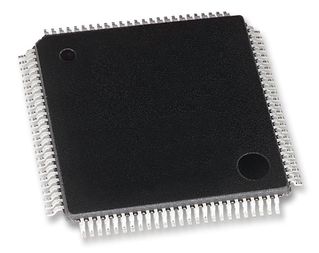

M30876FJAGP#U3 Renesas Electronics MCU 16-bit M16C CISC 512KB Flash 3.3V/5V 100-Pin LQFP Tray
The M32C/87 is based on the M32C/80 CPU Core and has 16MB of address space.Maximum operating frequency is 32MHz. Flash Memory Version. Internal Flash Memory is programmable on a single power source.
Connectivity CANbus, EBI/EMI, IC, IEBus, IrDA, SIO, UART/USART
Peripherals DMA, POR, PWM, WDT
Number of I/O 85
Program Memory Size 512KB (512K x 8)
Program Memory Type FLASH
EEPROM Size –
RAM Size 31K x 8
Voltage – Supply (Vcc/Vdd) 3V ~ 5.5V
Data Converters A/D 26x10b; D/A 2x8b
Oscillator Type Internal
Operating Temperature -20C to 85C (TA)
Mounting Type Surface Mount
Package / Case 100-LQFP
Supplier Device Package 100-LFQFP (14×14)
Manufacturer Part Number: M30876FJAGP#U3
Manufacturer: Renesas
