Description
The M74HC14 is a high speed CMOS hex Schmitt inverter fabricated with silicon gate C 2 MOS technology. Pin configuration and functions are the same as those of the M74HC04 but all i nputs have a 20 % V CC hysteresis level.

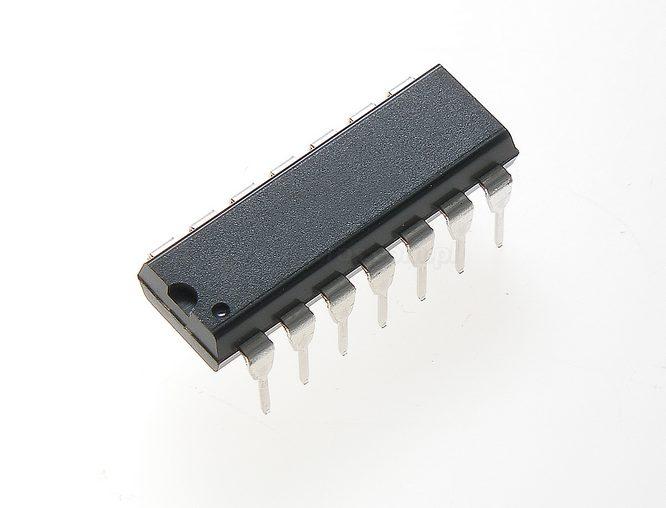

M74HC14B1R STMicroelectronics IC, HEX INVERTER, SCHMITT TRIGGER, DIP14, Logic Type:Inverter, Output Current:5.2mA, No. of Inputs:1, Supply Voltage Min:2V, Supply Voltage Max:6V, Logic Case Style:DIP, No. of Pins:14, Operating Temperature Min:-55 C, Packaging:Each, RoHS
Manufacturer:STMicroelectronics
Datasheet:en.CD00000263.pdf
