Description

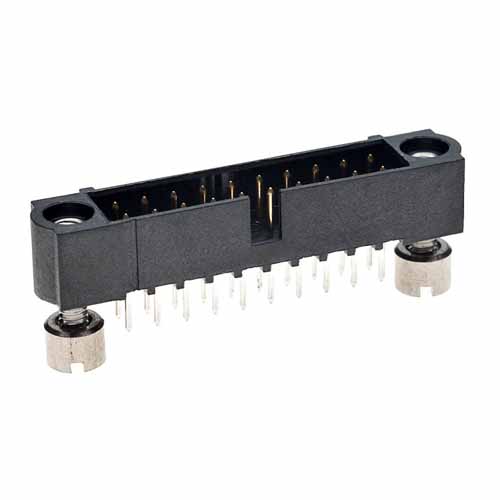

M80-5102042 Harwin Connector, Interconnect 20 position 0.079″ (2.00mm) Through Hole
Double Row, 3mm PC Tail connector with 3.5mm board mount jackscrews – 20 contacts (10+10).
Gold finish on contact area, Tin finish on termination. Slotted nuts provided for assembly to panel mount stud.
Specifications
Manufacturer: Harwin
Product Category: Headers & Wire Housings
RoHS
Product: Headers
Type: Shrouded
Number of Positions: 20 Position
Pitch: 2 mm
Number of Rows: 2 Row
Mounting Style: Mounting Flange
Termination Style: Through Hole
Mounting Angle: Straight
Contact Gender: Pin (Male)
Contact Plating: Gold
Termination Post Length: 3.3 mm
Series: J-Tek
Tradename: DATAMATE
Current Rating: 3 A
Housing Material: Polyphenylene Sulfide (PPS)
Brand: Harwin
Contact Material: Phosphor Bronze
Flammability Rating: UL 94 V-0
Row Spacing: 2 mm
Insulation Resistance: 100 MOhms
Latching Type: Jackscrew
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: – 55 C
Factory Pack Quantity: 8
Part # Aliases: M80-5T12042M2-00-000-00-000
Unit Weight: 0.069948 oz
Manufacturer Part Number: M80-5102042
Manufacturer: Harwin
