Description
Quad-Band GSM/GPRS Module

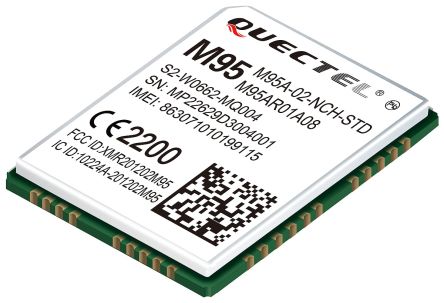

The M95 is a compact Quad-band GSM/GPRS module using Leadless Chip Carrier (LCC) castellation packaging. Based on the latest MTK chipset, it features GPRS multi-slot class 12, and ensures reliable connectivity with the applications. The GSM/GPRS M95 module works at frequencies of GSM850MHz, EGSM900MHz, DCS1800MHz and PCS1900MHz and enhances with ultra-low power consumption and extended temperature range.
Small Quad-band GSM/GPRS module with low power consumption
Easy soldering process with LCC package
Embedded Class-AB amplifier
Power consumption as low as 1.3mA in SLEEP mode
Embedded powerful Internet service protocols, multiple
Sockets & IP addresses
eCall
QuecFOTA to update the firmware remotely
Jamming detection
DTMF
Queclocator
Module Dimensions 19.9 x 23.6 x 2.65 mm
GSM/GPRS Mobile Communications Modules – Quectel
GSM (Global System for Mobile Communications) / GPRS (General Packet Radio Service) are 2G wireless technology.
Specifications
Supported Standards GPRS, GSM
Supported Frequency Bands 850,900,1800,1900 MHz
Multislot Class 12
Supported Bus Interfaces UART
Supported I/O Interfaces SIM, USIM
Dimensions 19.9 x 23.6 x 2.65mm
Height 2.65mm
Length 19.9mm
Maximum Operating Temperature +85C
Minimum Operating Temperature -40C
Width 23.6mm
Manufacturer:Electronic Components
Datasheet:M95FA.pdf
