Description

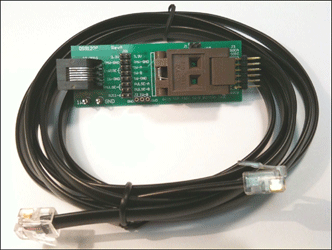

The DS9481R is a USB-to-1-Wire adapter for easy PC connectivity to 1-Wire devices. The adapter provides an RJ11 connector with the signals to communicate with all 1-Wire and iButton devices that support a 3.3V data I/O level. Additionally, the adapter provides the support and signaling to program 1-Wire/iButton EEPROM and one-time programmable (OTP)/EPROM devices. To provide a total hardware solution, the DS9481R can readily be used with the DS9120 socket adapter to create a 1-Wire PC programmer for 1-Wire slave devices (contact factory for more information). The equivalent slave hardware solution for the iButton is the DS1402D-DR8.
^Key Features
^
^ Driver Support for Windows 7, Windows Vista, and Windows XP Operating Systems
^ Enumerates as a Virtual PC COM Port by Use of the Prolific PL-2303HXD USB-to-UART Bridge IC
^ Emulates the DS2480B 1-Wire Line Driving Functionality
^ 1-Wire OTP/EPROM Programming Provided Without the Need of an External Power Supply (12V on OW, 7V on PULSE)
^ 3.3V Read/Write Operation to 1-Wire/iButton Devices
^ RJ11 Interface for Standard Connectivity Accessories such as the DS9120 Socket Adapter
^ Supports Standard and Overdrive 1-Wire Communication
^ Provides Strong Pullup to 3.3V
^ Fully Compliant with USB 2.0 Specification
^ Windows XP Certified Logo Drivers
^
Manufacturer Part Number: DS9481R-3C7
Manufacturer: Maxim
